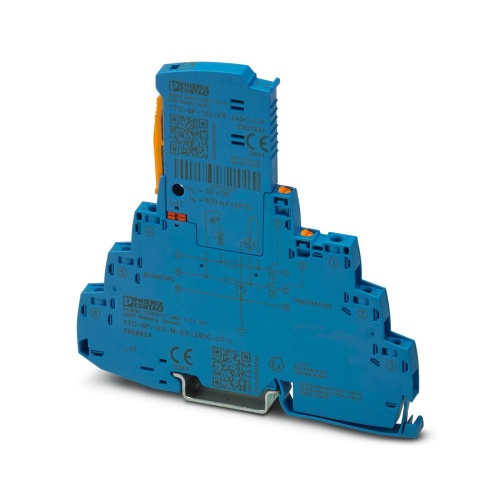

Phoenix Contact 2906824 Surge protection device TTC-6P-1X2-M-EX-24DC-UT-I
Normally In Stock
Code: 71661
TTC-6P-1X2-M-EX-24DC-UT-I Phoenix 2906824 Surge protection for measurement and control technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$215.53
Sale Price
$179.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

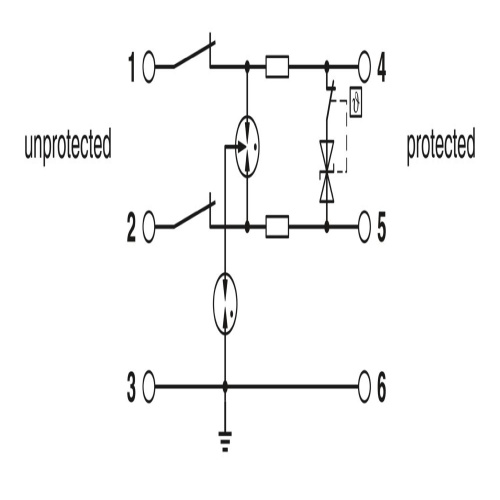

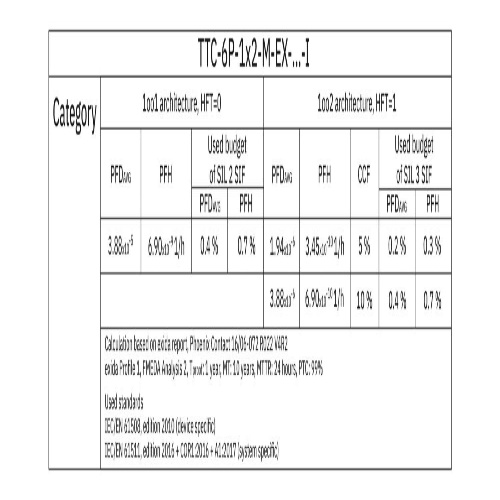

Phoenix Contact 2906824 A surge protection system consisting of a protective plug and base element with an integrated status indicator and disconnect knife is designed for use in 2-wire floating Ex-i signal circuits, such as those with a current loop measuring 0-20 mA, and is compatible with HART (Highway Addressable Random Access Technology) technology. This type of system can be utilized in safety-related circuits that require SIL level 3 compliance.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Direction of Action
L-L - L-PE
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement Plug
Max Discharge Capacity
55 A
Nominal Discharge Current
12.5 Ka
Component
Surge Protection Device
Features

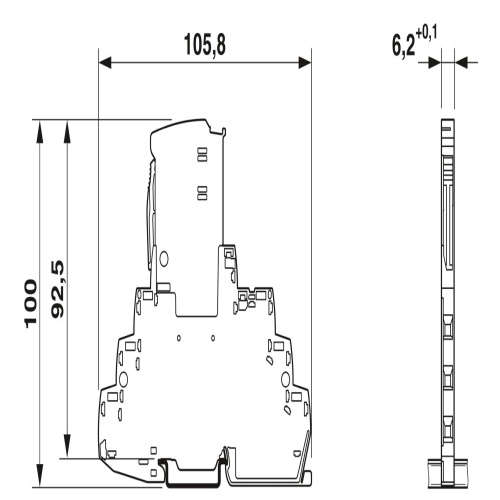

Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906824 Application Note English.pdfPhoenix 2906824 CAD data International.dxfPhoenix 2906824 CAD data International.pdfPhoenix 2906824 CAD data International.stpPhoenix 2906824 Certification English.pdfPhoenix 2906824 Certification International-2.pdfPhoenix 2906824 Certification International-3.pdfPhoenix 2906824 Certification International-4.pdfPhoenix 2906824 Certification International.pdfPhoenix 2906824 Flyer English-2.pdfPhoenix 2906824 Flyer English.pdfPhoenix 2906824 Manufacturer's declaration English.pdfPhoenix 2906824 Manufacturer's declaration International.pdfPhoenix 2906824 Manufacturers declaration English.pdfPhoenix 2906824 Manufacturers declaration International.pdfPhoenix 2906824 Package Slip International.pdfPhoenix 2906824 Surge Protection English.pdfPhoenix 2906824 Tender Text English.zip
