Phoenix Contact 2906853 Surge protection device TTC-6-TVSD-D-60DC-PT-I
Normally In Stock
Code: 71645
TTC-6-TVSD-D-60DC-PT-I Phoenix 2906853 Surge protection for measurement and control technology 60 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$41.12
Sale Price
$34.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

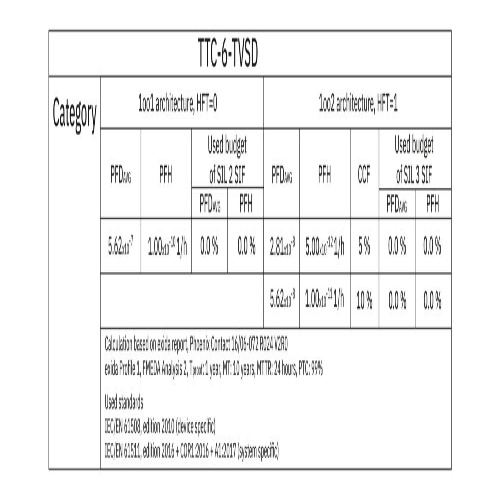

Phoenix Contact 2906853 This product offers excellent surge protection for a single 2-wire floating signal circuit and comes equipped with a built-in status indicator, providing real-time monitoring of the circuit's performance. Its high level of reliability makes it suitable for use in safety-critical applications where SIL 3 certification is required.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Maximum Continous Voltage
275 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Nominal Discharge Current
2.5 Ka
Surge Protector Line Voltage
60 Volt
Component
Surge Protection Device
Features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Downloads
Phoenix 2906853 Application Note English.pdfPhoenix 2906853 CAD data International.dxfPhoenix 2906853 CAD data International.pdfPhoenix 2906853 CAD data International.stpPhoenix 2906853 Certification International-2.pdfPhoenix 2906853 Certification International.pdfPhoenix 2906853 Flyer English-2.pdfPhoenix 2906853 Flyer English.pdfPhoenix 2906853 Manufacturers declaration English.pdfPhoenix 2906853 Manufacturers declaration International.pdfPhoenix 2906853 Product Information English.pdfPhoenix 2906853 Surge Protection English.pdfPhoenix 2906853 Tender Text English.zip
