Code: 714441

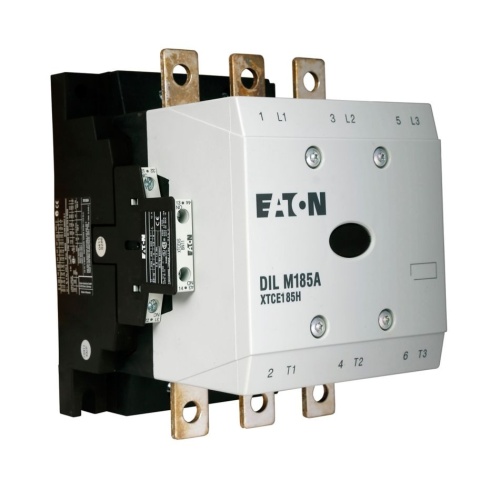

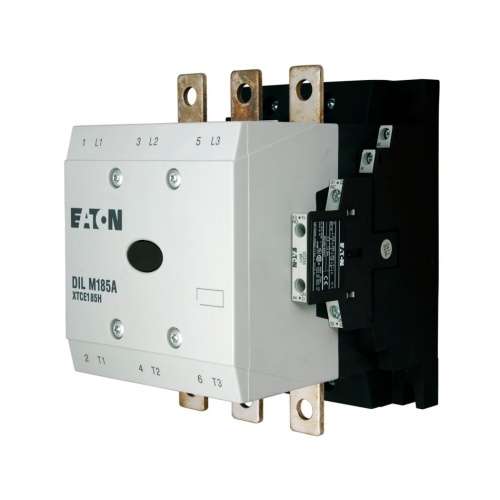

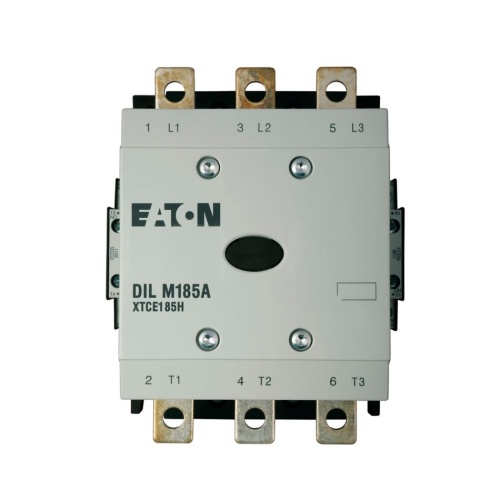

Eaton XTCE185H22A - XT IEC contactor, 185 Amp, 120 VAC, Three Pole
Normally In Stock
Eaton XTCE185H22A - XT IEC contactor, 185 Amp, 120 VAC, Three Pole
Condition: New
Usually ships Same Day or Next Day$1763.02
Sale Price
$1469.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTCE185H22A - XT IEC contactor, 185A, 100 Vac 50 Hz, 120 Vac 60 Hz, 2NO-2NC, 185A, Frame H, 140 mm, 50-60 Hz, 50, 75, 150, 200 hp (3PH @200, 240, 480, 600 V), Three-pole, Non-reversing, , Screw terminals, FVNR
Specifications
Starter Coil Voltage
120 VAC
Starter Poles
Three Pole
Starter Amperage
185 Amp
Manufacturer
Eaton
Component
XT IEC Contactor
Features
Up to frame size G are certified to UL standard 60335-2-40 and A2L certified
Up to 170 A
Frame sizes: 45 mm for up to 32 A
55 mm for up to 72 A
and 90 mm for up to 170 A
Temperature range –25 °C to +60 °C
Four-pole contactor up to 200 A
Uniform accessories for three-pole and four-pole contactors
Double box terminals for reliable wiring of different cross-sections
The contactors up to 38 A can be controlled directly from a PLC
DC-operated devices with integrated suppressor circuits
