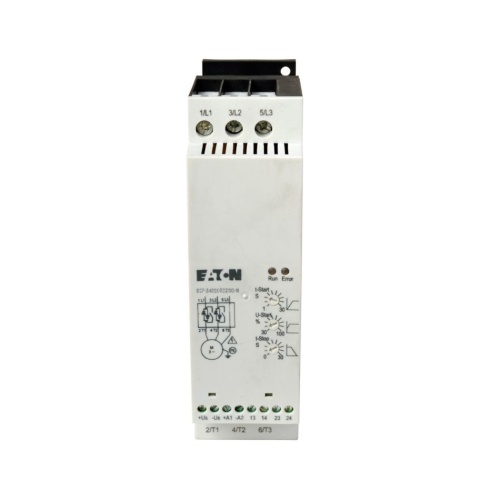

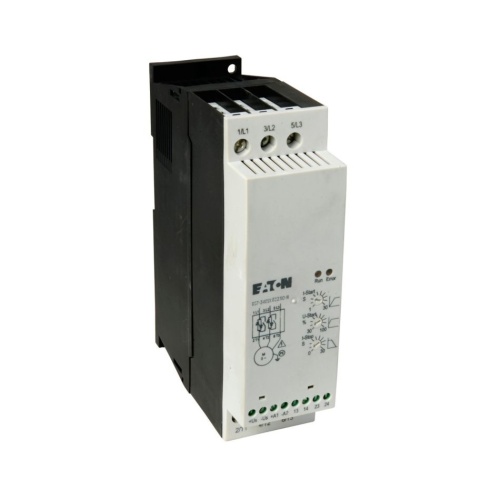

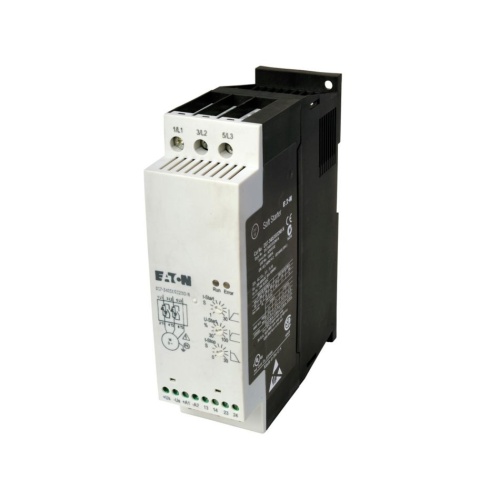

Eaton DS7-342SX032N0-N - DS7 soft start controller, 32 Amp
Normally In Stock
Code: 713874
Eaton DS7-342SX032N0-N - DS7 soft start controller, 32 Amp
Condition: New
Usually ships Same Day or Next Day$1120.33
Sale Price
$933.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DS7-342SX032N0-N - DS7 soft start controller, 23 second ramp, one start per hour, 300% current limit at 40°C, 32 A, 5 hp at 200 V, 10 hp at 230 V, 20 hp at 480 V, HFD3070 max breaker, 50 A Class RK5 max fuse
Specifications
Starter Amperage
32 Amp
Manufacturer
Eaton
Component
Soft Start Controller
Features
Run bypass mode greatly reduces internal heating created by the power dissipation across the SCRs
Bypass contactor directly connects the motor to the line and improves system efficiency by reducing internal power losses
Less heat minimizes enclosure size and cooling requirements, and maximizes the life of all devices in the enclosure
LED displays device status and provides fault indication
Variable ramp times and voltage control (torque control) settings provide unlimited starting configurations for maximum application flexibility
Manages peak starting torque to diminish mechanical system wear and damage
120 Vac or 24 Vdc control voltage available
Temperature monitoring sensors allow starter to trip in over/under temperature conditions, preventing device failure
Available with or without SmartWire-DT capability
