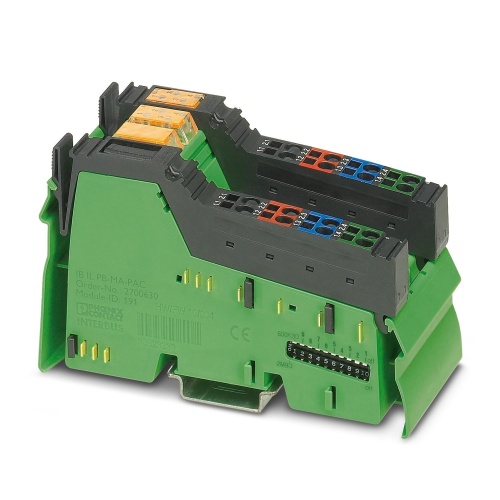

Phoenix Contact 2700630 Communication module IB IL PB MA-PAC
Normally In Stock
Code: 71194
IB IL PB MA-PAC Phoenix 2700630 I/O component Inline Bus PROFIBUS DP V0 master/slave 500 kbps / 2 Mbps 9-pos. D-SUB socket,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$424.50
Sale Price
$353.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700630 To connect a PROFIBUS system using an inline PROFIBUS master/slave device, it is essential to ensure that all necessary components, including the connector and marking field, are sourced from PC Worx as the product should be specifically designed and compatible for use with their systems.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
9-Pos. D-SUB Socket
PLC & IO Transmission Speed
500 Kbps - 2 Mbps
PLC & IO Network Interface
PROFIBUS DP V0 Master-Slave
PLC & IO Type
Inline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Size of PROFIBUS process image: up to 48 words of input and output data (a maximum of ten PROFIBUS slaves) or 56 words (a maximum of three PROFIBUS slaves)
Operation as DP master or slave
PROFIBUS data transmission speed of 9.6 kbps to 12 Mbps
PROFIBUS connection via 9-pos. D-SUB socket
Maximum of ten DP slaves supported when operated as the DP master
When operated as the DP slave: device description via GSD file, rotary encoding switch for setting the PROFIBUS address, support for PROFIBUS addresses 1 to 125
DIP switch for setting the operating mode, the startup behavior, the data width, and the transmission speed on the local bus
Diagnostic and status indicators
When operated as the DP master: the configuration data is stored on the memory stick
Downloads

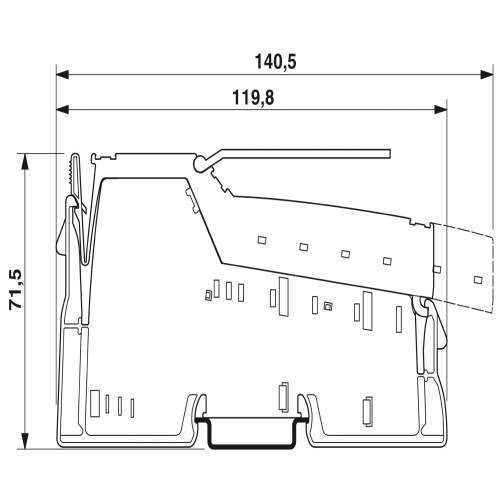

Phoenix 2700630 CAD data International.dxfPhoenix 2700630 CAD data International.pdfPhoenix 2700630 CAD data International.stpPhoenix 2700630 Data Sheet English.pdfPhoenix 2700630 Device Description International.zipPhoenix 2700630 Manual English.pdfPhoenix 2700630 Manufacturers declaration English.pdfPhoenix 2700630 Manufacturers declaration International-2.pdfPhoenix 2700630 Manufacturers declaration International.pdfPhoenix 2700630 Package Slip International.pdfPhoenix 2700630 Tender Text English.zipPhoenix 2700630 Various English.pdf
