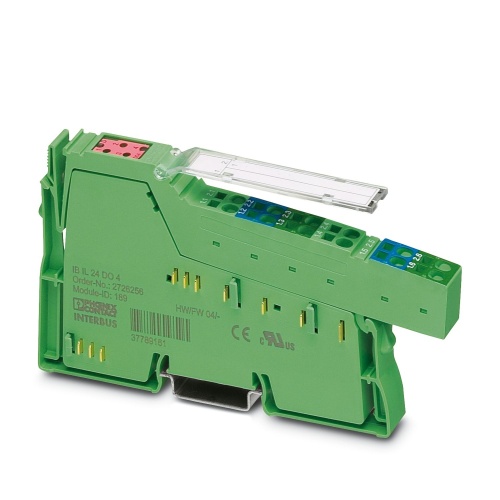

Phoenix Contact 2701155 Digital module IB IL 24 DO 4-XC-PAC
Normally In Stock
Code: 71177
IB IL 24 DO 4-XC-PAC Phoenix 2701155 I/O component Inline Digital Output,Bus,Terminal Inline local bus 500 kbps Inline data jumper,Spring-cage connection PLC & IO
Condition: New
Usually ships Same Day or Next Day$136.51
Sale Price
$113.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701155 The device features a digital output terminal with four channels that can operate at a voltage of 24V DC. It uses a 3-conductor connection technology and is designed to withstand extreme conditions. The local bus transmission speed is 500 kbps, providing protection up to IP20 rating, and comes equipped with an inline connector and labeling field for easy identification.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Type
Inline
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Total current of the terminal: 2 A

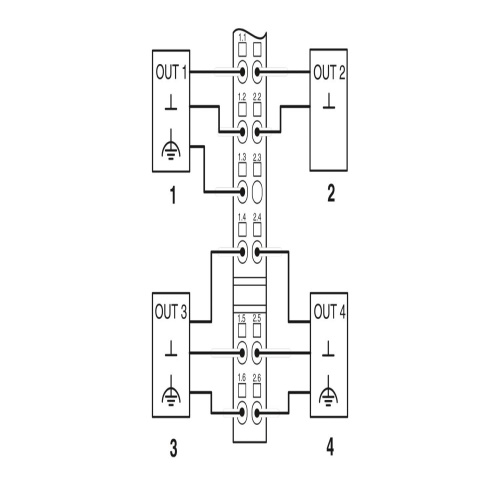

Connection of actuators in 2- and 3-conductor technology
Nominal current per output: 500 mA
4 digital outputs
Short-circuit and overload-protected outputs
Diagnostic and status indicators
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Coated PCBs
Downloads
Phoenix 2701155 CAD data International.dxfPhoenix 2701155 CAD data International.pdfPhoenix 2701155 CAD data International.stpPhoenix 2701155 Configuration software International.zipPhoenix 2701155 Manual English.pdfPhoenix 2701155 Manufacturers declaration English.pdfPhoenix 2701155 Manufacturers declaration International-2.pdfPhoenix 2701155 Manufacturers declaration International.pdfPhoenix 2701155 Package Slip International.pdfPhoenix 2701155 Tender Text English.zipPhoenix 2701155 Various English.pdf
