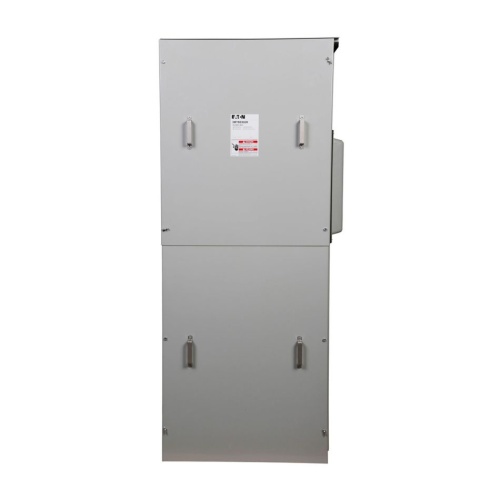

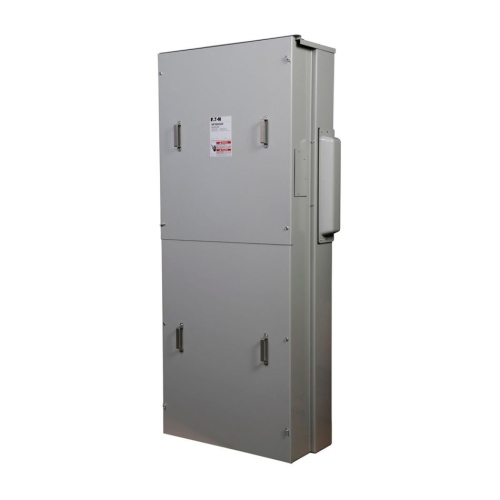

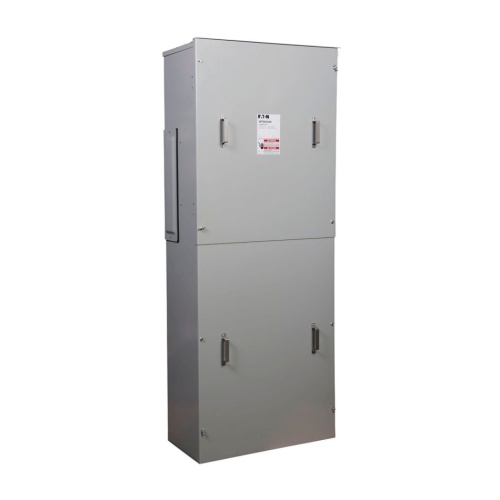

Eaton 3MTBE800R - Main Terminal Box, 800 Amp, Three Phase, 120/208 VAC
Normally In Stock
Code: 710181
Eaton 3MTBE800R - main terminal box, Riser box, 800A, Copper, NEMA 3R, Overhead/underground, Three-wire, Single-phase, 120/240V, Crimp lug landing pads (no lugs included)
Condition: New
Usually ships Same Day or Next Day$7659.04
Sale Price
$6382.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton 3MTBE800R - Main Terminal Box, 800 Amp, Three Phase, 120/208 VAC, Top/bottom
Specifications
Manufacturer
Eaton
Phase
Single Phase
Amperage
800 Amp
Utility Approvals
ID : Idaho Power
Utility Approvals
OR : Idaho Power
Utility Approvals
AK : Anchorage Municipal Light & Power
Utility Approvals
NV : NV Energy
Utility Approvals
WA : Seattle City Light
Utility Approvals
WA : Puget Sound Energy
Utility Approvals
WA : Tacoma Public Utilities
Utility Approvals
CA : City Of Los Angeles - DWP (LADWP)
Utility Approvals
AZ : Southern California Edison
Utility Approvals
CA : Southern California Edison
Utility Approvals
CA : Sacramento Municipal Utility District (SMUD)
Utility Approvals
WI : WE Energies / Wisconsin Public Service (WPS)
Component
Main Terminal Box
Maximum Voltage
120/208 VAC
Features
Integral surge adder accessory
Power Defense breaker with secondary injection testing capability provides savings
Service entrance meter mains with surge provide ARMS as standard product offering for 1000 A and above
Suitable for indoor or outdoor applications, no need for separate or additional equipment to ensure weather resistance
Knockouts provided in bottom endwall of enclosures, which saves time and money on installation
Metering modules may be bolted to one or both sides of the main device, which allows flexibility in installation
Eaton's gangable metering provides flexibility and customization for light commercial applications
