Code: 69936

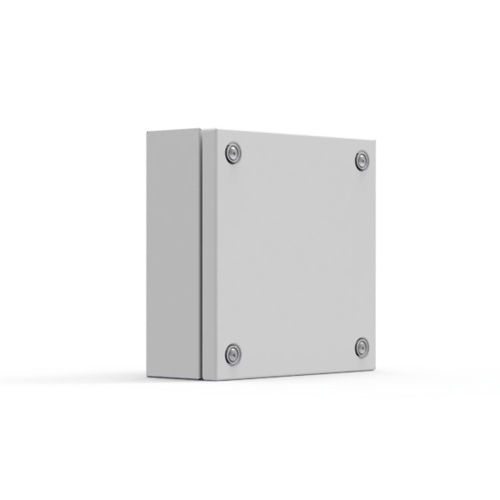

nVent Hoffman STB202012 IEC Terminal Box Mild Steel
nVent Hoffman STB202012 8"x8"x5" Steel NEMA Type 4,Type 12,Type 13 Outdoor-Indoor Wall-Mount IEC Terminal Box (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$147.64
Sale Price
$123.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman STB202012 IEC Terminal Box Mild SteelThe mild steel terminal box range, STB, with a IP 66 protection degree, is available off the shelf in many different sizes. The STB range is well suited for demanding indoor environments. Water and dust are prevented from entering the terminal box, thus eliminating the risk for component failure, and with that, unnecessary downtime.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
5"
Enclosure NEMA Rating
NEMA Type 4
Enclosure Height
8"
Enclosure Width
8"
Line
Global IEC
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Enclosure Composition
Steel
Component
IEC Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Protection: IP 66, TYPE 4, 12, IK 08.
Gasket: Sealing is ensured by an injected one piece polyurethane gasket.
Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
Finish: RAL 7035, structured powder coating.
Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
Material: 1.2 mm mild steel.
Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities.
