Code: 688639

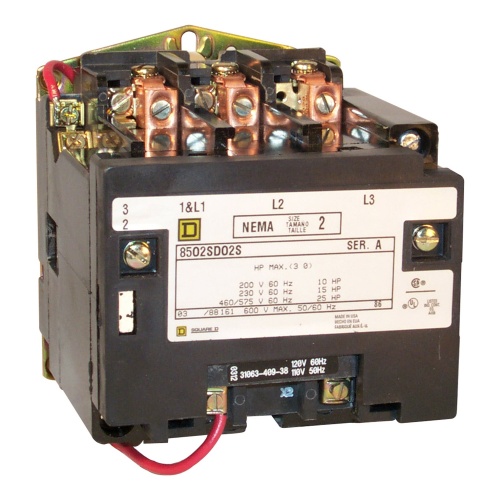

Schneider Electric 8502SDO1V02S - Type S Contactor - 45 Amp, 120 VAC, 2P, Open
Normally In Stock
Schneider Electric 8502SDO1V02S - Type S Contactor - 45 Amp, 120 VAC, 2P, Open
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1132.22
Sale Price
$943.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 8502SDO1V02S - NEMA Contactor, Type S, nonreversing, Size 2, 45A, 7.5HP at 230VAC, 1 phase, up to 100kA, 2 pole, 120VAC coil, open
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
Open
Manufacturer
Schneider Electric
Starter Poles
Two Pole
Starter Amperage
45 Amp
Features
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately
Type S contactors have ratings up to 810 amperes
This 2 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating
Single phase NEMA Size 2 contactors have 3 HP at 115 VAC and 7.5 HP at 230 VAC ratings
This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse
These contactors are available with replaceable coils in a wide variety of voltages
This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control
This NEMA contactor is an open device without an enclosure

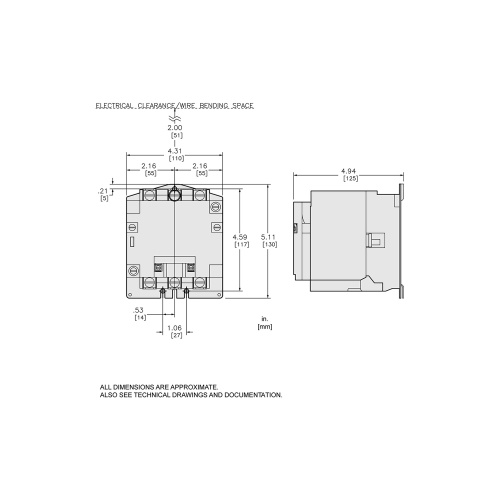

This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep
A wide variety of accessories are available for Type S contactors
Type S NEMA contactors are UL listed and CSA certified.
