Code: 688525

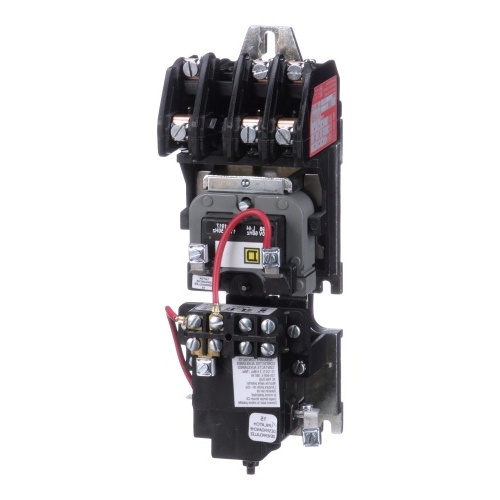

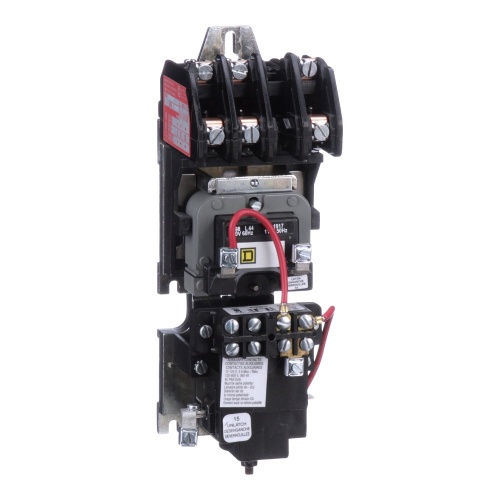

Schneider Electric 8903LXO30V03 - Type L/LX Lighting Contactor - 30 Amp, 220/240 VAC, 3P, Open
Normally In Stock
Schneider Electric 8903LXO30V03 - Type L/LX Lighting Contactor - 30 Amp, 220/240 VAC, 3P, Open
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$748.80
Sale Price
$624.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 8903LXO30V03 - 8903LX mechanically held lighting contactor, 3 P, 3 NO, 30 A, 600 V, 220/240 V 50/60 Hz coil, open
Specifications
Starter Enclosure Type
Open
Starter Coil Voltage
240 VAC
Starter Poles
3 Pole
Manufacturer
Schneider Electric
Starter Coil Voltage
220 VAC
Starter Amperage
30 Amp
Features
30 Amp ballast lighting rating, 20 Amp tungsten lighting rating
Electrically and mechanically held
50-60 Hz rated
2 -12 pole versions
Field-convertible contacts with N.O. and N.C. indicators (8 N.C. contacts maximum)
Silver-Cadmium-Oxide double break contacts
Available as open type or with following enclosures
NEMA Type 1 General Purpose
EMA Type 1 Flush Mounting General Purpose with Plaster Adjustment
NEMA Type 3R Rainproof Enclosure
NEMA Type 4 & 4X Watertight Dust tight and Corrosion Resistant Glass-Polyester
NEMA Type 4 & 4X Watertight, Dust-tight Brushed Stainless Steel
NEMA Type 12 Dust-tight and Drip-tight for Industrial use
Power Poles
Kits provided to add 30A power poles conveniently to existing Type L contactors when additional circuits are required
Type L contactors are supplied with mounting bracket, so adder poles may be conveniently mounted from the front by a single captive screw
Adder poles supplied with standard N.O. contacts which are convertible to N.C. for flexibility
UL Listed and CSA certified to meet a variety of North American needs
