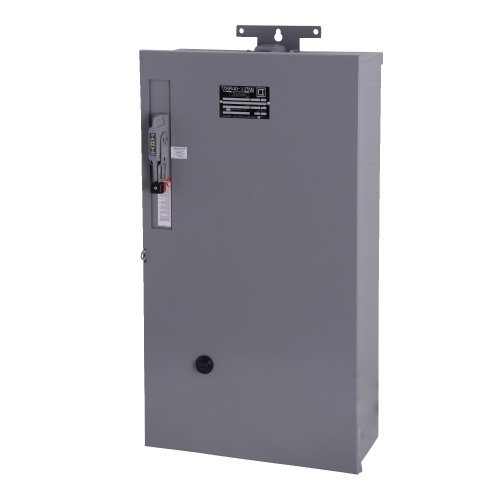

Schneider Electric 8940XC4S2V06H30 - WELL-GUARD® Pump Panel - 27 Amp, 480 VAC, 3P
Normally In Stock
Code: 687880
Schneider Electric 8940XC4S2V06H30 - WELL-GUARD® Pump Panel - 27 Amp, 480 VAC, 3P
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1460.59
Sale Price
$1217.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 8940XC4S2V06H30 - Pump Panel, NEMA Type S, Well Guard, oil field, Size 1, 27A, 10HP, HLL36030M71 circuit breaker, Motor Logic SSOLR, 480VAC 60Hz coil, NEMA 3R
Specifications
Starter Coil Voltage
480 VAC
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
27 Amp
Features
Well-Guard pumping plant panels are designed for pumping applications
This panel is specifically designed for oil field applications
These panels provide extra space for field installation of auxiliary equipment
These panels us Type S non-reversing magnetic starters
Panel has a HLL36030M71 circuit breaker
This panel has a 3 pole NEMA Size 1 starter that has a 27 ampere rating
This NEMA Size 1 starter has a maximum of 10 HP rating three phase
This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions
The starters in these panels are available with a wide variety of replaceable coil voltages
The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control
A painted sheet steel NEMA 3R rainproof slim line enclosure is used to protect this starter
Enclosure is 38.50 inches tall, 19.00 inches wide and 9.39 inches deep
A wide variety of accessories are available for Type S starters
This pump panel is supplied with a HAND/OFF/AUTO selector switch
These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment
They are also CSA certified.
