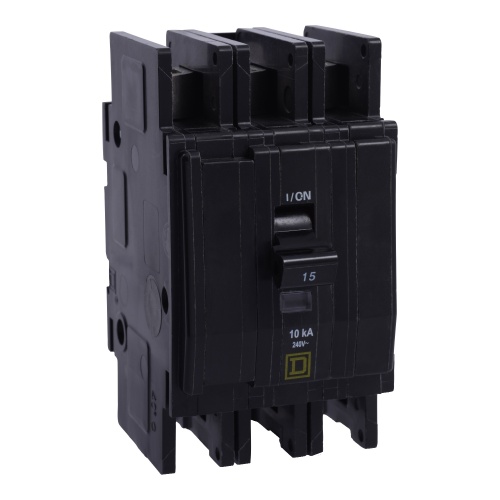

Schneider Electric QOUR3153100 - QOU Miniature circuit-breaker, 15 Amp, Three Pole, 10 kA, 120/240 VAC,240 VAC,120 VAC,48 VDC
Normally In Stock
Code: 686109
Schneider Electric QOUR3153100 - QOU Miniature circuit-breaker, 15 Amp, Three Pole, 10 kA, 120/240 VAC,240 VAC,120 VAC,48 VDC
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$408.48
Sale Price
$340.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric QOUR3153100 - Mini circuit breaker, QOU, 15A, 3 pole, 240 VAC, 10kA, field reversible lugs, mounting foot
Specifications
Breaker Amperage Rating
15 Amp
Breaker Number of Poles
Three Pole
Breaker Voltage Rating
120 VAC
Breaker Voltage Rating
240 VAC
Breaker Voltage Rating
120/240 VAC
Breaker Voltage Rating
48 VDC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications
QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems
These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication
They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet
This three pole QOU miniature circuit breaker is rated as 15A, 240 VAC
This circuit breaker provides 10 kA breaking capacity
A full line of accessories are available for these circuit breakers
This breaker has tapped mounting feet
The rotatable lugs will accept one 14 AWG to 2 AWG copper or aluminum wire

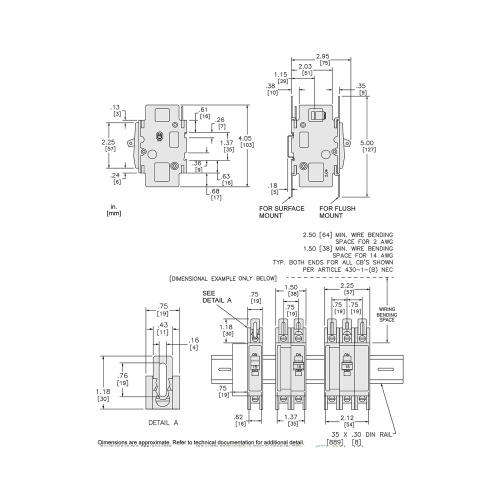

This circuit breaker has a maximum height of 4.05 inches, a maximum width of 1.50 inches and maximum depth of 2.95 inches
QOU circuit breakers are UL Listed and CSA Certified.
