Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

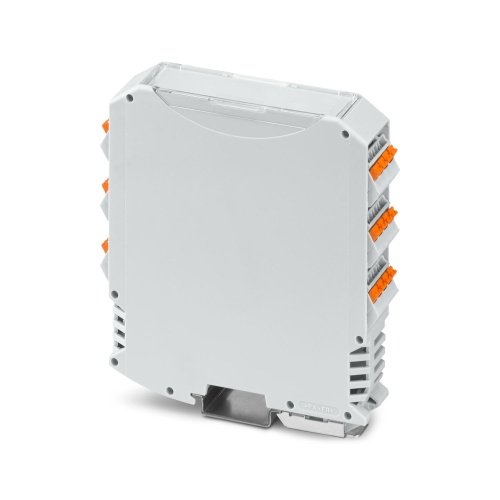

Phoenix Contact 1342915 Housing set ME MAX 22,5-KIT-3-3-7035+6PSPT4
Normally In Stock
Code: 675684
Phoenix Contact ME MAX 22,5-KIT-3-3-7035+6PSPT4 - Stackable housing set, 3.9" x 0.9" x 4.5" (HxWxD), Polyamide - 1342915
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$37.15
Sale Price
$30.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1342915 The DIN rail housing is a rectangular enclosure designed to be mounted on a standard DIN rail, featuring a light gray color (similar to RAL 7035) and dimensions of 22.5mm width, 99mm height, and 113.65mm depth. It includes six PCB connectors with four positions and can be secured using a screw connection for currents up to 12A at a nominal voltage of 320V, with a surface area of the printed circuit board (PCB) measuring approximately 6800 square millimeters.

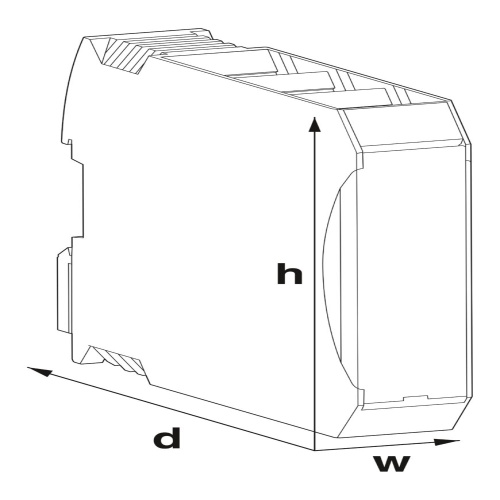

Specifications
Enclosure Depth
4.5"
Enclosure Composition
Polyamide
Manufacturer
Phoenix Contact
Enclosure NEMA Rating
IP20
Component
DIN Rail Housing
Enclosure Height
3.9"
Enclosure Width
0.9"
