Code: 65895

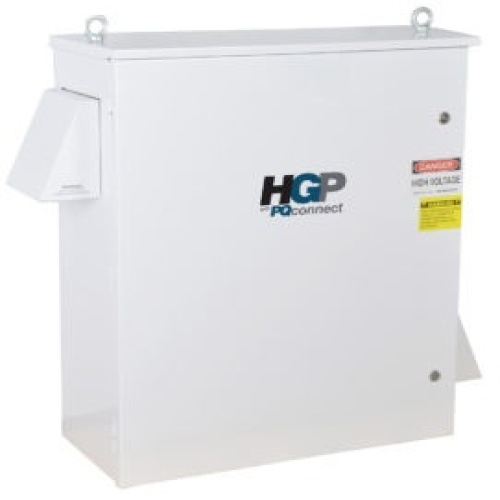

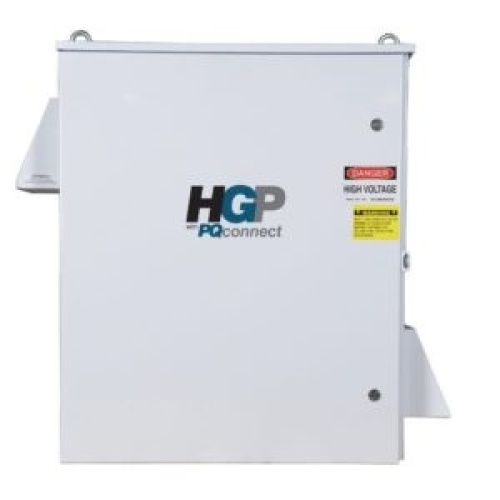

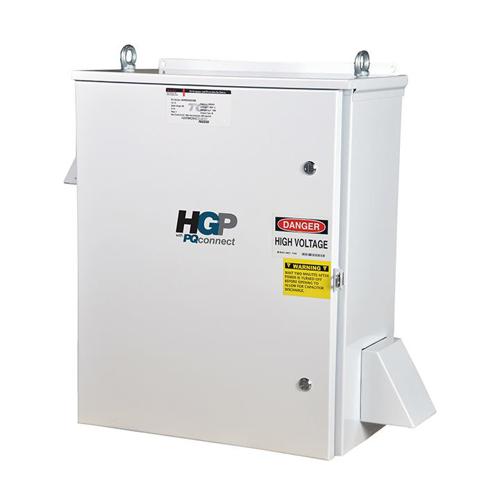

TCI HGP0015CW0C0000 (HGP) Harmonic Filter 600 Volt 3 Phase, 17 Amp, 15 HP
Normally In Stock
TCI HGP0015CW0C0000 HarmonicGuard Passive (HGP) Harmonic Filter 600 V, 15 HP, 17 Amp, 5 kVar, 190 Watts Loss. Open UL Type rating with Contactor and No Heater. No PQconnect, 30.75 high x 17 wide x 11.5 deep.
Condition: New
Usually Ships within 2-4 weeks$5345.03
Sale Price
$4454.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI HGP0015CW0C0000 - The HarmonicGuard Passive (HGP) is a Drive applied passive Harmonic Filter used to meet IEEE-519 5% iTHD or lower with background distortion as high as 5% 100kA SCCR, fused branch circuit to protect capacitors, contactor option available to remove capacitor branch UL 508A filter which allows for end user field maintenance. - 32.3" x 17.49" x 12.54" (HxWxD)
Specifications
VFD Filter Enclosure
Open
VFD Filter Includes Heater
No Heater
VFD Filter Line
(HGP) Harmonic Filter
VFD Filter Horsepower
15 HP
VFD Filter Voltage
600 Volt
VFD Filter Impedance
5%
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Frequency
60 Hz
VFD Filter kVar
5 Kvar
VFD Filter Watts Loss
170 Watts
Filter Type
Harmonic
Features
Limits total harmonic current distortion down to 5% over the widestg load range in the industry
Ensures IEEE-519 2022 compliance
Intelligent control and monitoring available with PQconnect
Communications and data analytics available via Modbus RTU and EtherNet/IP
Generator compatibility
High quality components
Made in the USA
