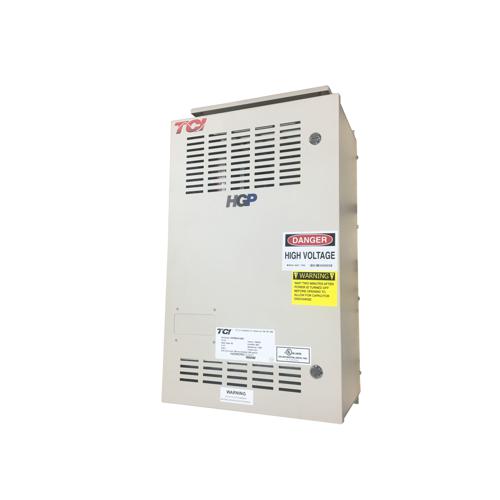

TCI HGP0075AW1C1000 (HGP) Harmonic Filter 480 Volt 3 Phase, 96 Amp, 75 HP
Normally In Stock
Code: 65417
TCI HGP0075AW1C1000 HarmonicGuard Passive (HGP) Harmonic Filter 480 V, 75 HP, 96 Amp, 25 kVar, 660 Watts Loss. Type 1 UL Type rating with Contactor and No Heater. With PQconnect via Modbus RTU, 31.55 high x 17.5 wide x 12.54 deep.
Condition: New
Usually Ships within 2-4 weeks$10910.70
Sale Price
$9092.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI HGP0075CW0C0000 - The HarmonicGuard Passive (HGP) is a Drive applied passive Harmonic Filter used to meet IEEE-519 5% iTHD or lower with background distortion as high as 5% 100kA SCCR, fused branch circuit to protect capacitors, contactor option available to remove capacitor branch UL 508A filter which allows for end user field maintenance. - 32.3" x 17.49" x 12.54" (HxWxD)
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Contactor
Contactor
VFD Filter Includes Heater
No Heater
VFD Filter Connectivity
Pqconnect Via Modbus RTU
VFD Filter Line
(HGP) Harmonic Filter
VFD Filter Horsepower
75 HP
VFD Filter Impedance
5%
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Frequency
60 Hz
VFD Filter kVar
25 Kvar
VFD Filter Watts Loss
800 Watts
VFD Filter Enclosure
UL Type 1
Filter Type
Harmonic
Features
Limits total harmonic current distortion down to 5% over the widestg load range in the industry
Ensures IEEE-519 2022 compliance
Intelligent control and monitoring available with PQconnect
Communications and data analytics available via Modbus RTU and EtherNet/IP
Generator compatibility
High quality components
Made in the USA
