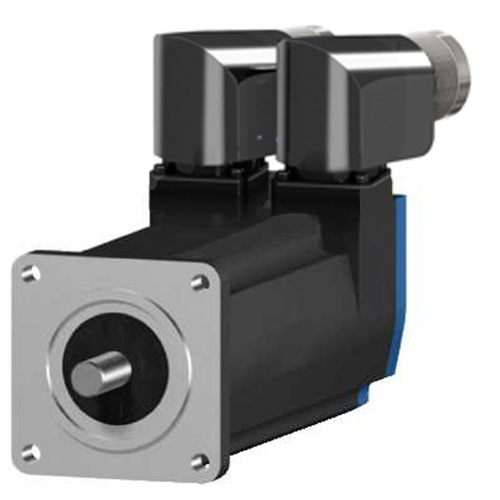

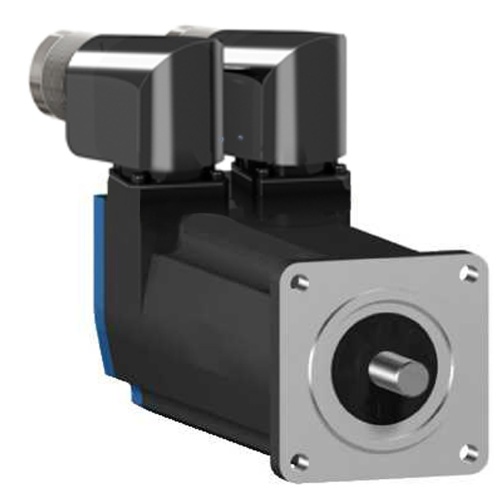

This product is part of the Lexium range, an offer of motion servo drives and servo motors

The 6-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 9000RPM and IP54 parallel keyed shaft without holding brake

It is equipped with a single-turn (131072 points/turn) SinCos Hiperface® high-resolution absolute encoder giving an angular shaft position precise to less than ±1.3 arc minutes

BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia

It is compact, and offers a high power density

It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 1.7A and a maximum continuous power of 0.97W

The shaft dimensions are 9mm (Diameter) x 20mm (Length)

It is furnished with rotatable right-angled connectors for electrical connection

It is an IP50 rated product

Its dimensions are 176.5mm (Length) x 55mm (Width), centring collar dimensions are 2mm (Depth) x 40mm (Diameter) with 63mm circle diameter of the mounting hole

It weighs 1.76kg

This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives

It supports international standard 55mm flange mount with a natural convection cooling system

Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts

BSH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets

Casing with RAL 9005 opaque black paint protective coating

4-point axial mounting flange

Cables and connectors to be ordered separately.
