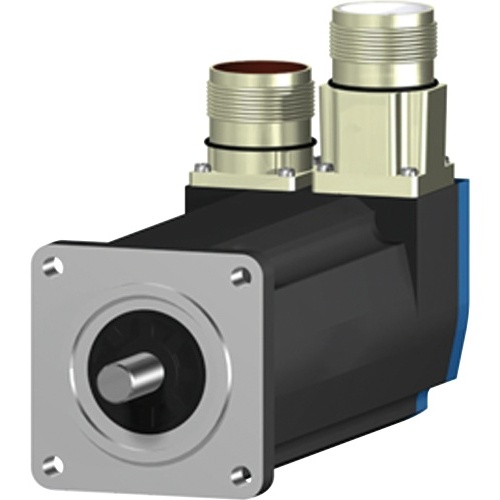

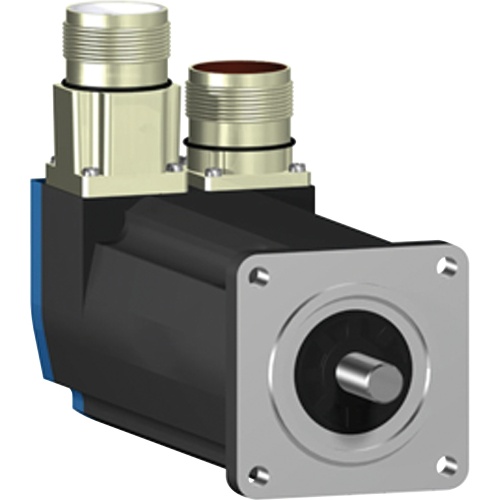

Schneider Electric BSH0553T31A1A Servo Motor - 9000 RPM (Max), 11.9 Amp, 0.97 W, 3 Phase, 480 Volt
Normally In Stock
Code: 651186
Schneider Electric BSH0553T31A1A - Servo Motor, Natural Convection, 6 Pole, Without Holding brake, 9000 RPM (Max), 0.97 W, 480 Volt, 11.9 Amp, 3 Phase
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1314.34
Sale Price
$1095.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric BSH0553T31A1A - servo motor BSH, Lexium 05, 1.3N.m, 3000rpm, 55mm, keyed shaft, Sincos single turn, without brake, IP65, straight
Specifications
Motor Voltage Phases
3 Phase
Manufacturer
Schneider Electric
Motor Voltage
480 Volt
Motor Amperage (Full Load)
11.9 Amp
Motor RPM's
9000 RPM
Motor Watts
0.97 W
Features
This product is part of the Lexium 32 & Motors range, an offer of servo motors from 0.4kW to 6kW
The 6-pole AC servo motor features a low moment of inertia with a maximum mechanical speed of 9000RPM and keyed shaft without holding brake
It is an equipped with a single-turn (1,31,072 points/turn) SinCos Hiperface® high resolution absolute encoder
It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 3.1A and a maximum continuous power of 0.97W
The shaft dimensions are 9mm (diameter) x 20mm (length)
It is furnished with straight connectors for electrical connection
It is an IP65 and IP67 rated product
The length of this product is 176.5mm and the centering collar dimensions are 2mm (depth) x 40mm (diameter) with 63mm mounting hole
It weighs 1.76kg
This range is compatible with Lexium 32 and Lexium 05 servo drives
This product is compatible with LXM05AD17F1 at 110V to 120V single phase
It supports 55mm international standard flange mount with a natural convection cooling system
Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality
The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
