Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 642074
Phoenix Contact 1582160 Panel feed-through QPD W 3PE2,5 6-10 M25 1,0 BK
Normally In Stock
Phoenix Contact QPD W 3PE2,5 6-10 M25 1,0 BK Panel feed-through - 4 Positions, Black - 1582160
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$35.23
Sale Price
$29.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

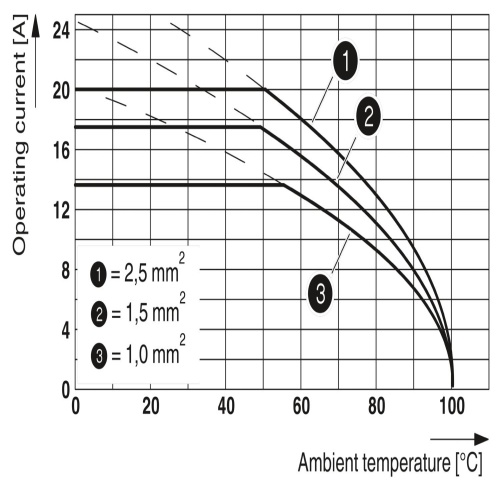

Phoenix Contact 1582160 The panel feed-through product family QPD features a single-wire or IDC connection method and comes in various sizes including 3+PE, M25, Pin configurations with power ratings up to 20 A at 690 V. The products are available in black PA material with a QUICKON nut for coding, and have cable diameters ranging from 6 mm to 10 mm, with wires cut flat at the end and a standard cable length of 1 m.
Specifications
Connector Color
Black
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
4
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
