Code: 642042

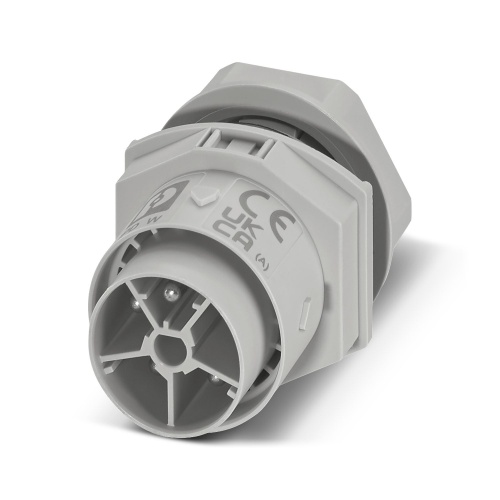

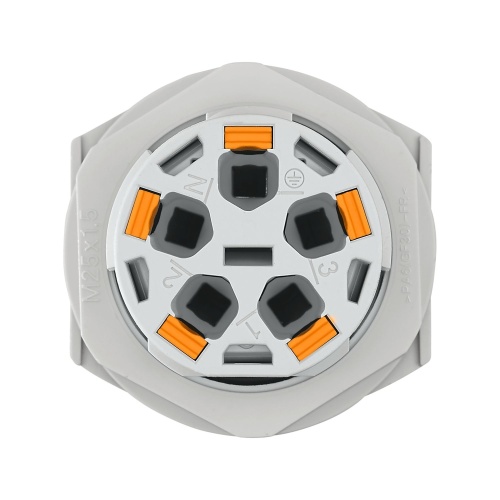

Phoenix Contact 1088691 Panel feed-through IPD W 5P2,5 M M25 GY
Normally In Stock
Phoenix Contact IPD W 5P2,5 M M25 GY Panel feed-through - 5 Positions, Light gray - 1088691
Condition: New
Usually ships Same Day or Next Day$18.49
Sale Price
$15.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088691 The panel feed-through for connectors in the IPD product family features a push-in connection with four or more pins, ranging from 0.5mm² to 2.5mm², and operates at 600V with a maximum current of 17.5A, while also being coded as P (gray) in color.
Specifications
Connector Color
Light Gray
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
5
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
