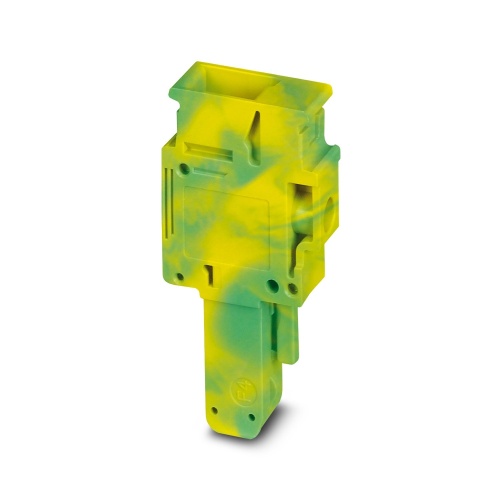

Phoenix Contact 3060720 Plug UP 6/ 1 GNYE
Normally In Stock
Code: 63987
Phoenix 3060720 Terminal Plug Screw connection 1000 V 41 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.89
Sale Price
$3.24
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060720 The cable has a nominal voltage of 1000 V and a maximum current rating of 41 A, featuring one position for screw connections and a rated cross-sectional area of 6 mm², with an actual cross-sectional area ranging from 0.2 to 6 mm², and a color code indicating it is green-yellow in hue.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
8.2 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Amperage
41 Amp
Terminal Block Component Color
Green/Yellow
Jumper Pitch
8.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Free choice of connection technology with uniformly designed COMBI plug-in zone
A nominal current of 41 A and a nominal voltage of 1,000 V can be realized with the powerful plug-in contact
Maximum safety with the touch-proof design
Protection against mismatching with individual coding options
Complete flexibility with connectors for self-assembly
Downloads
Phoenix 3060720 CAD data International.dxfPhoenix 3060720 CAD data International.pdfPhoenix 3060720 CAD data International.stpPhoenix 3060720 Manufacturers declaration English.pdfPhoenix 3060720 Manufacturers declaration International.pdfPhoenix 3060720 Safety note English.pdfPhoenix 3060720 Tender Text English.zip
