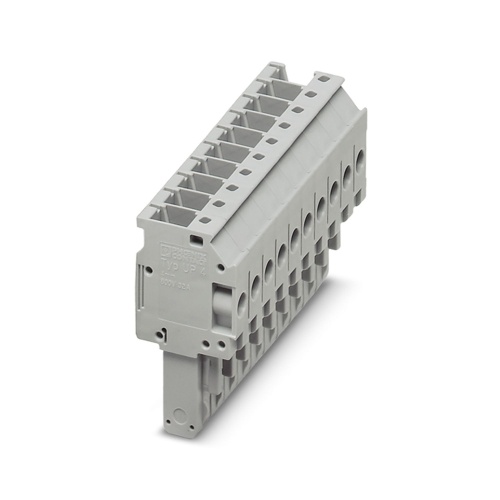

Phoenix Contact 3060209 Plug UP 4/10
Normally In Stock
Code: 63986
Phoenix 3060209 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$17.51
Sale Price
$14.59
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060209 The plug has a high voltage rating of 800 volts and can handle a significant current flow of up to 32 amps. It features 10 different connections, secured with screw connections, and is designed to accommodate various cross-sectional sizes between 0.2mm² and 6mm². The overall dimensions are further identified by the color gray, which may help identify the plug's specifications when needed.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Terminal Block Width
62 mm
Jumper Number of Positions
10
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Screw actuation from the side
Conductor connection from above
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Downloads
Phoenix 3060209 CAD data International.dxfPhoenix 3060209 CAD data International.pdfPhoenix 3060209 CAD data International.stpPhoenix 3060209 Manufacturers declaration English.pdfPhoenix 3060209 Manufacturers declaration International.pdfPhoenix 3060209 Safety note English.pdfPhoenix 3060209 Tender Text English.zip
