Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

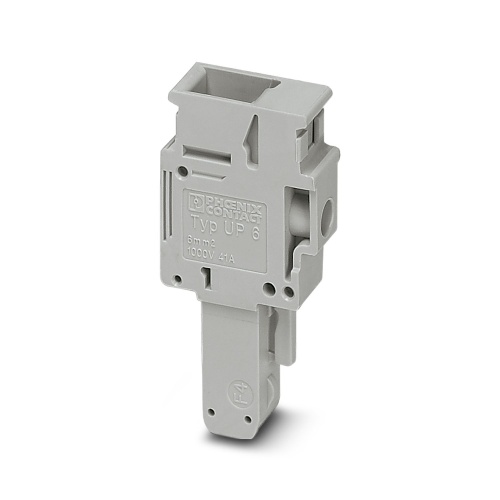

Phoenix Contact 3060610 Plug UP 6/ 1
Normally In Stock
Code: 63974
Phoenix 3060610 Terminal Plug Screw connection 1000 V 41 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.79
Sale Price
$3.16
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060610 The plug's specifications include a voltage rating of 1000 V and a nominal current capacity of 41 A, with only one connection point available, utilizing a screw connection method. The plug has a rated cross-sectional area of 6 mm² but can accommodate cross-sectional areas ranging from 0.2 mm² to 6 mm², and its body is characterized by a gray color.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
8.2 mm
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Amperage
41 Amp
Jumper Pitch
8.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Free choice of connection technology with uniformly designed COMBI plug-in zone
A nominal current of 41 A and a nominal voltage of 1,000 V can be realized with the powerful plug-in contact
Maximum safety with the touch-proof design
Protection against mismatching with individual coding options
Complete flexibility with connectors for self-assembly
Downloads
Phoenix 3060610 CAD data International.dxfPhoenix 3060610 CAD data International.pdfPhoenix 3060610 CAD data International.stpPhoenix 3060610 Manufacturers declaration English.pdfPhoenix 3060610 Manufacturers declaration International.pdfPhoenix 3060610 Safety note English.pdfPhoenix 3060610 Tender Text English.zip
