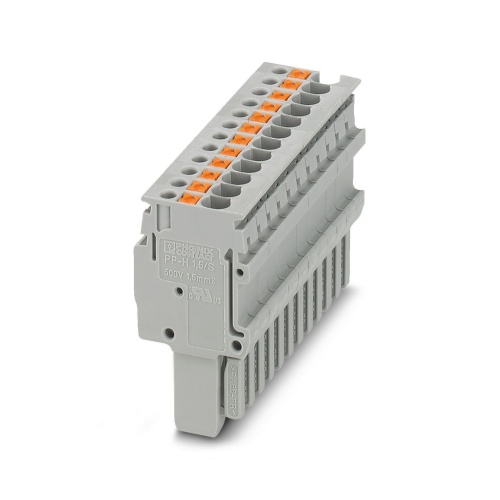

Phoenix Contact 3212617 Plug PP-H 1,5/S/12
Normally In Stock
Code: 63973
PP-H 1,5/S/12 Phoenix 3212617 Terminal Plug Push-in connection 500 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$14.94
Sale Price
$12.45
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212617 The product specifications include a voltage rating of 500 V and a nominal current capacity of 17.5 A. It has 12 connections with push-in connectors, accommodating up to 12 different positions. The cross-sectional area is rated at 1.5 mm2 for the main conductor, while smaller conductors range from 0.14 mm2 to 1.5 mm2. The overall design also features a gray color scheme.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
12
Terminal Block Component Color
Gray
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Terminal Block Width
42 mm
Jumper Pitch
3.5 mm
Jumper Number of Positions
12
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
