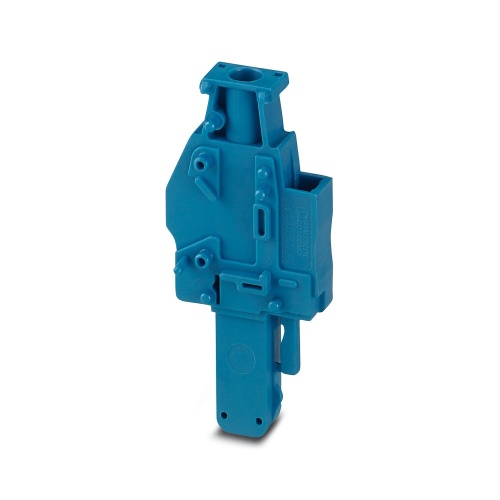

Phoenix Contact 3045787 Plug UPBV 4/ 1-R BU
Normally In Stock
Code: 63938
Phoenix 3045787 Terminal Plug Screw connection 800 V 32 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.41
Sale Price
$2.01
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045787 The plug features an 800V voltage rating and a maximum nominal current of 32A, allowing it to accommodate a single position connection via screw attachment. The rated cross-sectional area is 4mm², with a range of 0.14mm² to 6mm² for added flexibility, and it has a distinctive blue coloration.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Can be bridged with FBS ... standard bridges
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The plugs are assembled directly on site by snapping together 1-position plug elements
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045787 CAD data International.dxfPhoenix 3045787 CAD data International.pdfPhoenix 3045787 CAD data International.stpPhoenix 3045787 Manufacturers declaration English.pdfPhoenix 3045787 Manufacturers declaration International.pdfPhoenix 3045787 Safety note English.pdfPhoenix 3045787 Tender Text English.zip
