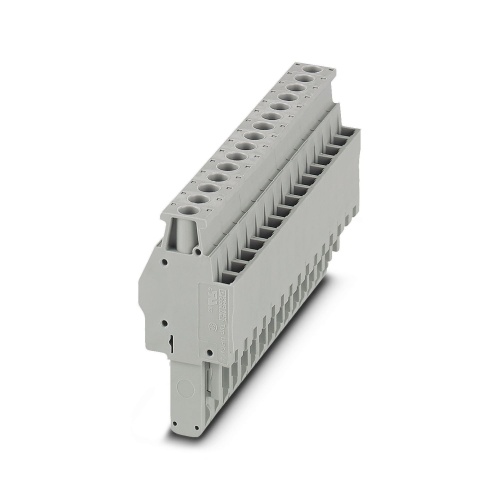

Phoenix Contact 3045949 Plug UPBV 4/15
Normally In Stock
Code: 63907
Phoenix 3045949 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$26.52
Sale Price
$22.10
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045949 The plug's specifications include a nominal voltage of 800 V and a current rating of 32 A, accommodating up to 15 different positions for connections. The connection method is through a screw mechanism, while the cross-sectional area ranges from 0.14 mm2 to 6 mm2 with a minimum size of 4 mm2. The plug's color is gray.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
93 mm
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
15
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features

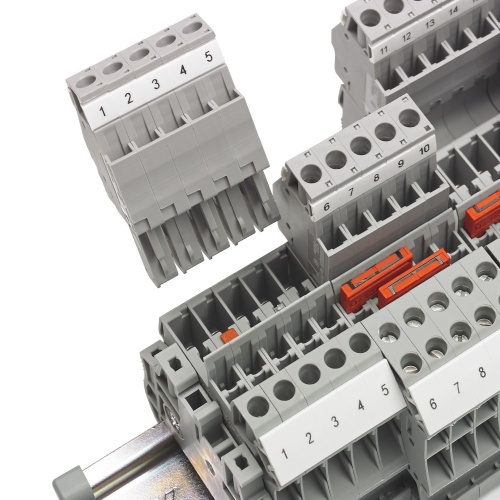

Can be bridged with FBS ... standard bridges
Connector with lateral conductor connection direction
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045949 CAD data International.dxfPhoenix 3045949 CAD data International.pdfPhoenix 3045949 CAD data International.stpPhoenix 3045949 Manufacturers declaration English.pdfPhoenix 3045949 Manufacturers declaration International.pdfPhoenix 3045949 Safety note English.pdfPhoenix 3045949 Tender Text English.zip
