Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

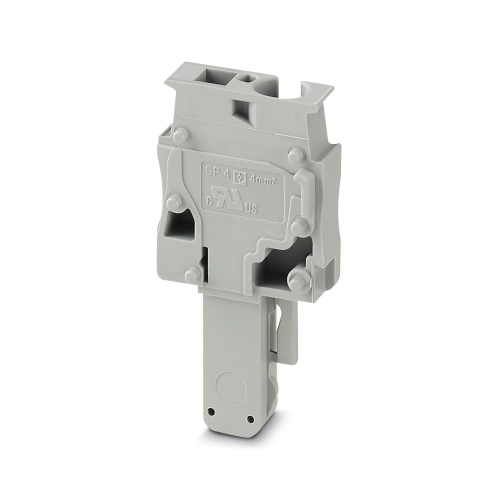

Phoenix Contact 3042780 Plug SP 4/ 1-M
Normally In Stock
Code: 63716
Phoenix 3042780 Terminal Plug Spring-cage connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$3.26
Sale Price
$2.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042780 The specified electrical plug has a voltage rating of 800 V and a nominal current capacity of 32 A, designed to fit into one position with a spring-cage connection. The plug's cross-sectional area is within the range of 0.08 mm2 to 6 mm2, while its outer diameter is approximately 4 mm in diameter. Its color is gray, indicating standard industrial applications.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Downloads
Phoenix 3042780 CAD data International.dxfPhoenix 3042780 CAD data International.pdfPhoenix 3042780 CAD data International.stpPhoenix 3042780 Data Sheet English.pdfPhoenix 3042780 Manufacturers declaration International.pdfPhoenix 3042780 Safety note English.pdfPhoenix 3042780 Tender Text English.zip
Code: 63716
Phoenix Contact 3042780 Plug SP 4/ 1-M
$3.26
Sale Price
$2.72
MUST BUY IN PACKS OF 50
