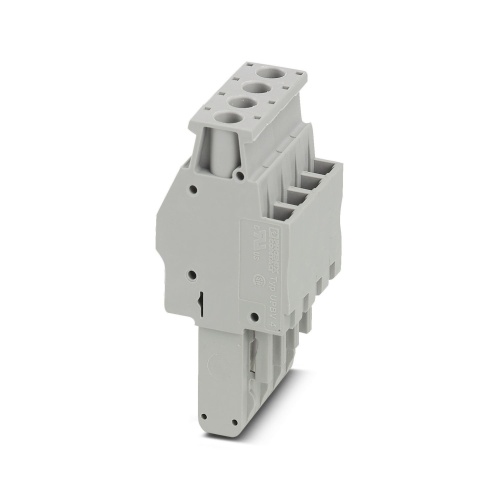

Phoenix Contact 3045839 Plug UPBV 4/ 4
Normally In Stock
Code: 63684
Phoenix 3045839 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$8.68
Sale Price
$7.23
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045839 The electrical plug features a rating of 800 volts and a maximum current capacity of 32 amps, allowing for up to four connections. It is secured with screw connections and has a rated cross-sectional area of 4mm², but can accommodate cross-sections ranging from 0.14mm² to 6mm². The plug's outer casing is typically gray in color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
24.8 mm
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
4
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features

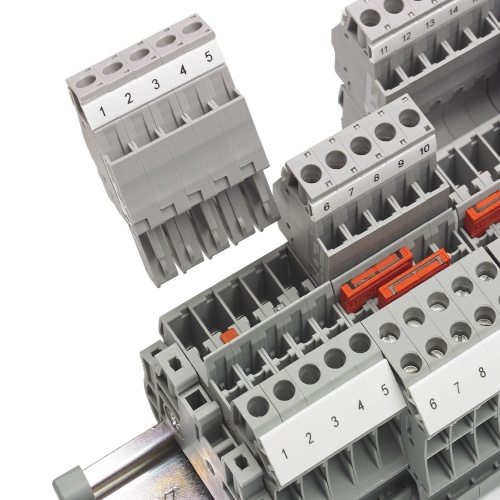

Can be bridged with FBS ... standard bridges
Connector with lateral conductor connection direction
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045839 CAD data International.dxfPhoenix 3045839 CAD data International.pdfPhoenix 3045839 CAD data International.stpPhoenix 3045839 Manufacturers declaration English.pdfPhoenix 3045839 Manufacturers declaration International.pdfPhoenix 3045839 Safety note English.pdfPhoenix 3045839 Tender Text English.zip
