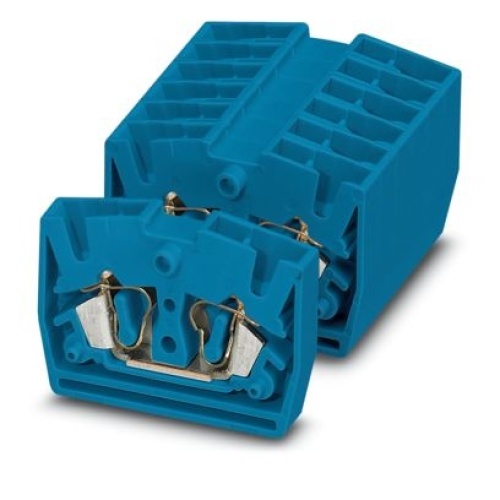

Phoenix Contact 3244070 Mini feed-through terminal block MSB 2,5-M BU
Normally In Stock
Code: 63451
MSB 2,5-M BU Phoenix 3244070 Miniature terminal block Spring-cage connection 800 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.42
Sale Price
$1.18
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244070 A mini feed-through terminal block is available with various mounting options including flange or securing pin terminals and features a nominal voltage of 800 V and a maximum current capacity of 24 A for two connections utilizing a spring-cage connection method. The rated cross-sectional area is between 2.5 mm² and 4 mm², allowing for one level of mounting with an additional cross-sectional area from 0.08 mm² to meet different requirements, and its color is blue in other non-standard mounting configurations.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Downloads
Phoenix 3244070 CAD data International.dxfPhoenix 3244070 CAD data International.pdfPhoenix 3244070 CAD data International.stpPhoenix 3244070 Certification English.pdfPhoenix 3244070 Certification International.pdfPhoenix 3244070 Manufacturers declaration International-2.pdfPhoenix 3244070 Manufacturers declaration International.pdfPhoenix 3244070 Safety note English.pdfPhoenix 3244070 Tender Text English.zipPhoenix 3244070 User instructions for the Ex Area English.pdf
