Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

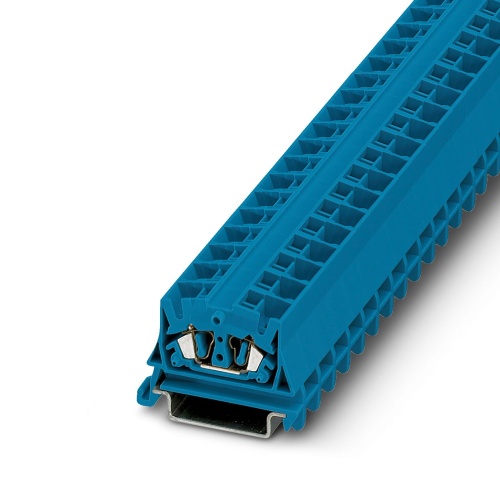

Phoenix Contact 3244313 Mini feed-through terminal block MSDB 2,5-NS 35 BU
Normally In Stock
Code: 63447
MSDB 2,5-NS 35 BU Phoenix 3244313 Miniature terminal block Spring-cage connection 800 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.38
Sale Price
$1.98
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244313 A mini feed-through terminal block features 800 V nominal voltage and 24 A nominal current, accommodating four connections via spring-cage connection with a rated cross-section ranging from 0.08 mm2 to 4 mm2, available in two mounting types (NS 35/7,5 and NS 35/15) and presented in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.4 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Space-saving, thanks to compact design and mounting option on a 35 mm DIN rail
Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 3244313 CAD data International.dxfPhoenix 3244313 CAD data International.pdfPhoenix 3244313 CAD data International.stpPhoenix 3244313 Certification English.pdfPhoenix 3244313 Certification International.pdfPhoenix 3244313 Manufacturers declaration International-2.pdfPhoenix 3244313 Manufacturers declaration International.pdfPhoenix 3244313 Safety note English.pdfPhoenix 3244313 Tender Text English.zipPhoenix 3244313 User instructions for the Ex Area International.pdf
