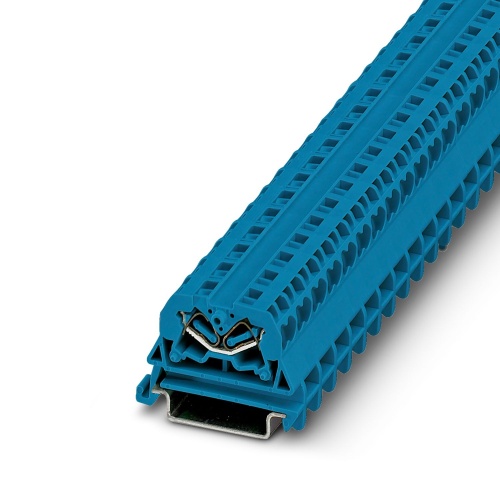

Phoenix Contact 3249224 Mini feed-through terminal block MSDBV 2,5-NS 35 BU
Normally In Stock
Code: 63445
MSDBV 2,5-NS 35 BU Phoenix 3249224 Miniature terminal block Spring-cage connection 800 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.14
Sale Price
$1.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3249224 A mini feed-through terminal block features an 800 V nominal voltage and a 24 A nominal current capacity, accommodating up to four connections via spring-cage connection. The rated cross section is 2.5 mm2, with multiple levels featuring varying cross sections from 0.08 mm2 to 4 mm2, and the mounting type is available in NS 35/7.5 and NS 35/15 options, finished in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.4 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
For mounting on NS 35 ... DIN rail
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
