Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

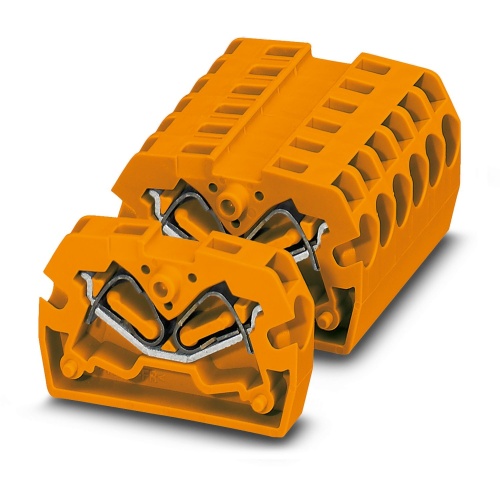

Phoenix Contact 3073238 Mini feed-through terminal block MSBV 2,5-M OG
Normally In Stock
Code: 63435
MSBV 2,5-M OG Phoenix 3073238 Miniature terminal block Spring-cage connection 800 V 24 Amp orange Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.60
Sale Price
$1.33
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3073238 A mini feed-through terminal block is available for combination use with specific models of connectors, featuring a nominal voltage of 800 V and a maximum current rating of 24 A. It has two connection points utilizing a spring-cage method, with rated cross-sections ranging from 0.08 mm2 to 4 mm2. The block can be mounted directly onto a flange using a direct mounting style, while its orange coloration provides visual identification.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Component Color
Orange
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
