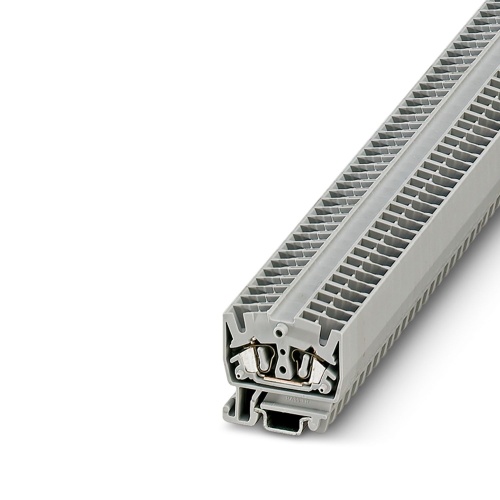

Phoenix Contact 3244012 Mini feed-through terminal block MSB 2,5
Normally In Stock
Code: 63429
MSB 2,5 Phoenix 3244012 Miniature terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.85
Sale Price
$1.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244012 The mini feed-through terminal block features a nominal voltage of 800V and a maximum current capacity of 24A, accommodating up to two connections via spring-cage connection method with cross-sectional ratings ranging from 0.08mm2 to 4mm2. It is mounted using an NS15 type mounting system and has a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Can be used in smaller terminal boxes
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Downloads
Phoenix 3244012 CAD data International.dxfPhoenix 3244012 CAD data International.pdfPhoenix 3244012 CAD data International.stpPhoenix 3244012 Certification English.pdfPhoenix 3244012 Certification International.pdfPhoenix 3244012 Manufacturers declaration International-2.pdfPhoenix 3244012 Manufacturers declaration International.pdfPhoenix 3244012 Safety note English.pdfPhoenix 3244012 Tender Text English.zipPhoenix 3244012 User instructions for the Ex Area International.pdf
