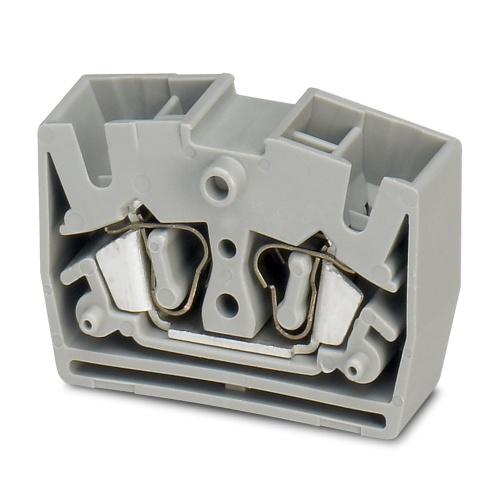

Phoenix Contact 3244232 Mini feed-through terminal block MSDB 2,5-F
Normally In Stock
Code: 63425
MSDB 2,5-F Phoenix 3244232 Miniature terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.06
Sale Price
$1.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244232 The mini feed-through terminal block features a nominal voltage of 800 V and a maximum current rating of 24 A, with four separate connection points that utilize a spring-cage connection system, allowing for a range of cross-sectional sizes from 0.08 to 4 mm2, while its compact design makes it suitable for mounting on a panel, with a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.4 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Easy potential distribution thanks to standardized plug-in bridges
Downloads
Phoenix 3244232 CAD data International.dxfPhoenix 3244232 CAD data International.pdfPhoenix 3244232 CAD data International.stpPhoenix 3244232 Certification English.pdfPhoenix 3244232 Certification International.pdfPhoenix 3244232 Manufacturers declaration International-2.pdfPhoenix 3244232 Manufacturers declaration International.pdfPhoenix 3244232 Safety note English.pdfPhoenix 3244232 Tender Text English.zipPhoenix 3244232 User instructions for the Ex Area English.pdf
