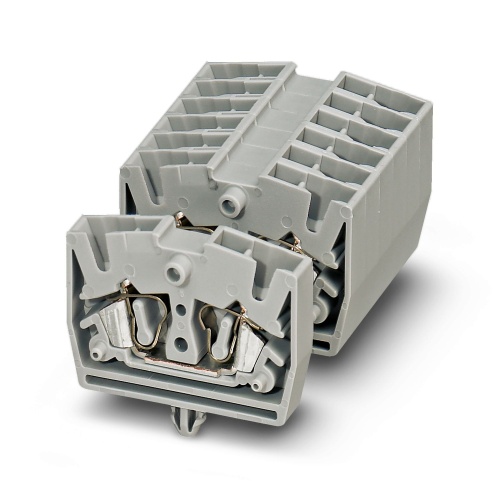

Phoenix Contact 3244164 Mini feed-through terminal block MSB 2,5-RZ
Normally In Stock
Code: 63420
MSB 2,5-RZ Phoenix 3244164 Miniature terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.85
Sale Price
$1.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244164 A mini feed-through terminal block features a nominal voltage of 800 V and a nominal current capacity of 24 A, accommodating two connections with a spring-cage connection method, rated for cross-sections ranging from 0.08-4 mm2, and is mounted on a mounting panel in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Can be freely combined with MS(D)B 2,5‑M middle terminal blocks
Space saving, thanks to the compact design and mounting option directly on the mounting panel
Clear arrangement thanks to marking of all terminal points
