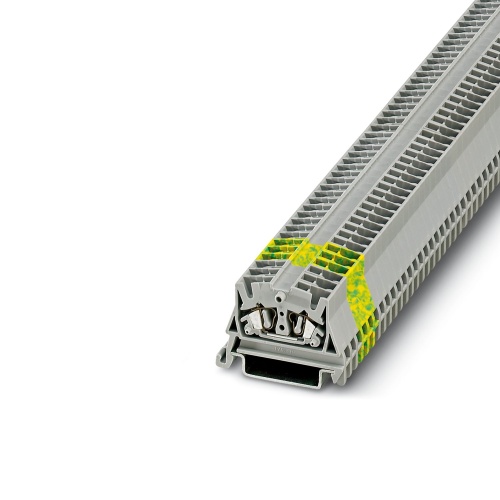

Phoenix Contact 3244119 Mini feed-through terminal block MSB 2,5-NS 35
Normally In Stock
Code: 63419
MSB 2,5-NS 35 Phoenix 3244119 Miniature terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2.20
Sale Price
$1.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244119 A mini feed-through terminal block features a nominal voltage of 800 V and can handle a maximum current of 24 A through its two connections, which utilize a spring-cage connection method. The rated cross-sectional area ranges from 0.08 mm2 to 4 mm2 for one level of the unit, with a mounting type of NS 35/7,5 or NS 35/15 and a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Downloads
Phoenix 3244119 CAD data International.dxfPhoenix 3244119 CAD data International.pdfPhoenix 3244119 CAD data International.stpPhoenix 3244119 Certification English.pdfPhoenix 3244119 Certification International.pdfPhoenix 3244119 Manufacturers declaration International-2.pdfPhoenix 3244119 Manufacturers declaration International.pdfPhoenix 3244119 Safety note English.pdfPhoenix 3244119 Tender Text English.zipPhoenix 3244119 User instructions for the Ex Area International.pdf
