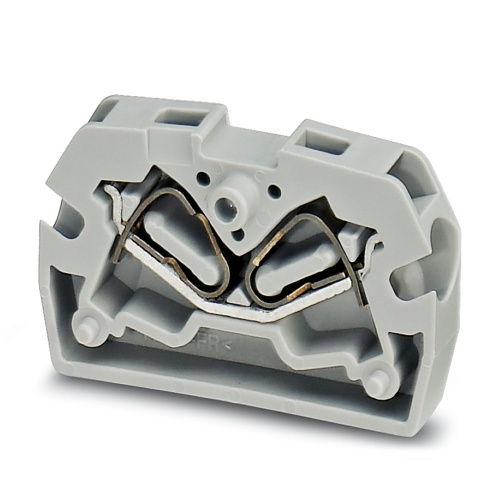

Phoenix Contact 3249059 Mini flange terminal block MSBV 2,5-F
Normally In Stock
Code: 63415
MSBV 2,5-F Phoenix 3249059 Miniature terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.42
Sale Price
$1.18
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3249059 The mini flange terminal block is compatible with the D-MSBV 2,5-F and MSBV 2,5-M models, featuring a nominal voltage of 800 V and a maximum current capacity of 24 A. It has two connections, utilizing a spring-cage connection method, and comes in various cross section ratings from 0.08 mm² to 4 mm², with the overall rated cross section being 2.5 mm² per level. The terminal block is mounted using direct screw connections and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Flange Terminal Block
Features
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
