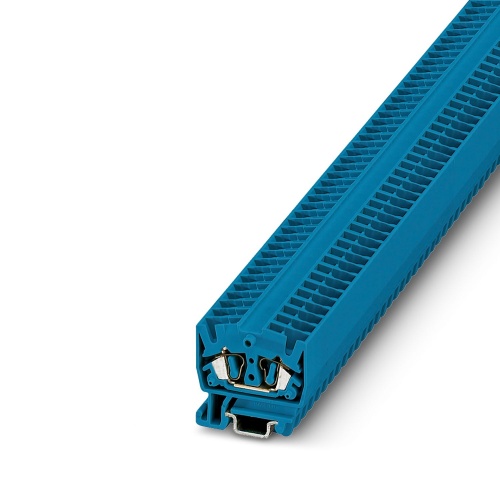

Phoenix Contact 3244025 Mini feed-through terminal block MSB 2,5 BU
Normally In Stock
Code: 63409
MSB 2,5 BU Phoenix 3244025 Miniature terminal block Spring-cage connection 800 V 24 Amp blue Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.85
Sale Price
$1.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244025 The mini feed-through terminal block features a nominal voltage of 800V and a maximum current capacity of 24A, accommodating two connections made via a spring-cage connection method. The rated cross-sectional area is specified at 2.5mm² for the outer level and ranges from 0.08mm² to 4mm² for the inner levels. Mounting is via an NS15 type, with a blue color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Can be used in smaller terminal boxes
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Downloads
Phoenix 3244025 CAD data International.dxfPhoenix 3244025 CAD data International.pdfPhoenix 3244025 CAD data International.stpPhoenix 3244025 Certification English.pdfPhoenix 3244025 Certification International.pdfPhoenix 3244025 Manufacturers declaration International-2.pdfPhoenix 3244025 Manufacturers declaration International.pdfPhoenix 3244025 Safety note English.pdfPhoenix 3244025 Tender Text English.zipPhoenix 3244025 User instructions for the Ex Area International.pdf
