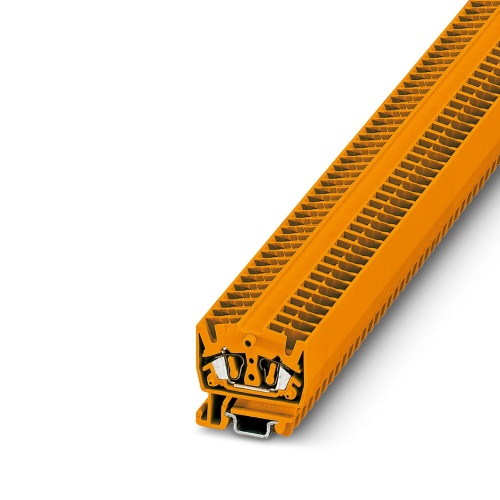

Phoenix Contact 3244038 Mini feed-through terminal block MSB 2,5 OG
Normally In Stock
Code: 63404
MSB 2,5 OG Phoenix 3244038 Miniature terminal block Spring-cage connection 800 V 24 Amp orange Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.62
Sale Price
$1.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3244038 A mini feed-through terminal block features a nominal voltage of 800 V and a nominal current capacity of 24 A, accommodating two connections via spring-cage connection method, with rated cross-sections ranging from 0.08 to 4 mm2, mounted on an NS 15 base and available in orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Component Color
Orange
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Sub Component
Mini Feed-Through Terminal Block
Features
Can be used in smaller terminal boxes
Clear arrangement thanks to marking of all terminal points
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Downloads
Phoenix 3244038 CAD data International.dxfPhoenix 3244038 CAD data International.pdfPhoenix 3244038 CAD data International.stpPhoenix 3244038 Certification English.pdfPhoenix 3244038 Certification International.pdfPhoenix 3244038 Manufacturers declaration International-2.pdfPhoenix 3244038 Manufacturers declaration International.pdfPhoenix 3244038 Safety note English.pdfPhoenix 3244038 Tender Text English.zipPhoenix 3244038 User instructions for the Ex Area International.pdf
