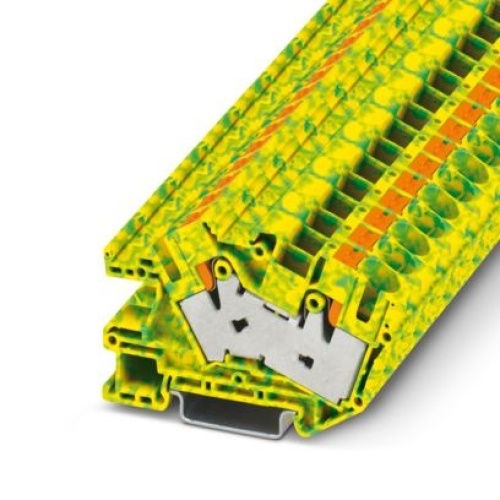

Phoenix Contact 3214024 Installation protective conductor terminal block PTI 16/S-PE
Normally In Stock
Code: 63379
PTI 16/S-PE Phoenix 3214024 Ground terminal block Push-in connection 500 V 76 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$12.17
Sale Price
$10.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214024 A protective conductor terminal block is available with a nominal voltage of 500 V and a maximum current capacity of 76 A, featuring push-in connections at one level. The rated cross-sectional area ranges from 0.5 mm² to 16 mm², with various mounting types including NS 35/7,5 and NS 35/15, and is identified by its green-yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Push-in Connection
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Terminal Block Component Color
Green/Yellow
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Ground terminal block
Sub Component
Installation Ground Terminal Block
Features
Compatible with all Phoenix Contact installation terminal blocks
As well as the testing facility in the function shaft, each terminal point has a test contact
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
Compact design tailored to distribution boards
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34 mm² or higher
