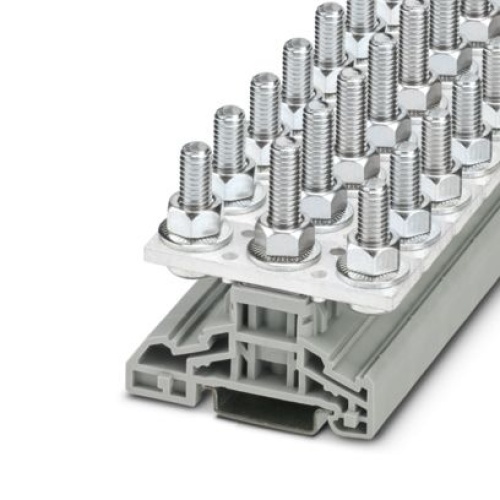

HV M8/2 Phoenix Contact 3049550 gray Bolt connection Terminal Block
HV M8/2 Phoenix 3049550 Bolt connection terminal block Bolt connection 1000 V 150 Amp gray Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 25)
Price: $30.70
Sale Price:
$19.10
High Current Connectors, nom. voltage: 1000 V, nominal current: 150 A, connection method: Bolt connection, number of connections: 2, width: 21 mm, height: 65.1 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 1000 Volt |
| Terminal Block Fused | Not Fused |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 2 |
| Terminal Block Connection Method | Bolt Connection |
| Terminal Block Component Color | Gray |
| Terminal Block Grounded | Not Grounded |
| Terminal Block High-current | High-current Terminal Block |
| Terminal Block Width | 21 mm |
| Terminal Block Amperage | 150 Amp |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Sub Component | Bolt connection terminal block |
| Sub Component | High Current Connectors |
Customer Reviews
0.0
All Reviews
Phoenix 3049550 CAD data International.dxf
Phoenix 3049550 CAD data International.pdf
Phoenix 3049550 CAD data International.stp
Phoenix 3049550 Manufacturers declaration English.pdf
Phoenix 3049550 Manufacturers declaration International.pdf
Phoenix 3049550 Manufacturers declaration International-2.pdf
Phoenix 3049550 Safety note English.pdf
Phoenix 3049550 Tender Text English.zip
Related Products
$5.92

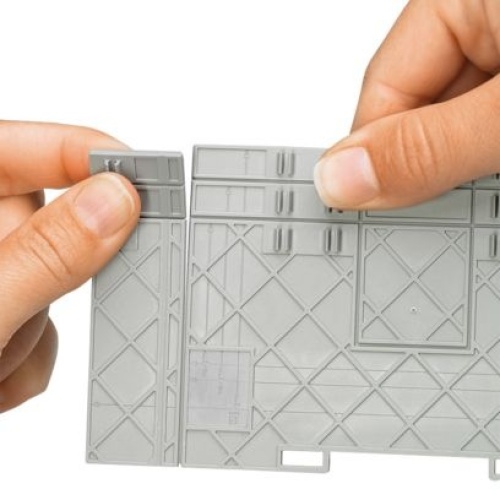

Phoenix Contact HV M12/2-TP - Separating plate, width: 2 mm, height: 156 mm, color: gray - 3049709
