Phoenix Contact 3031238 Spring-cage protective conductor terminal block ST 2,5-PE
Normally In Stock
Code: 63309
ST 2,5-PE Phoenix 3031238 Ground terminal block Spring-cage connection green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$6.79
Sale Price
$5.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

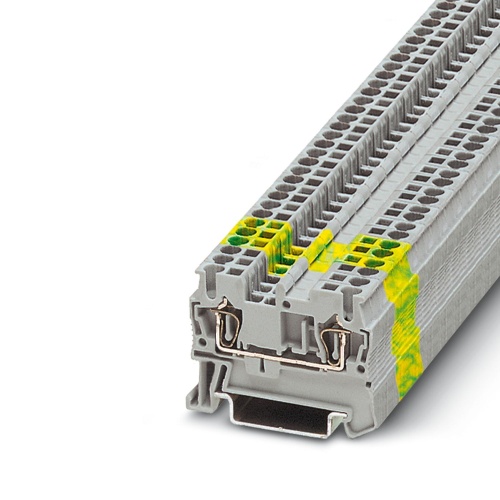

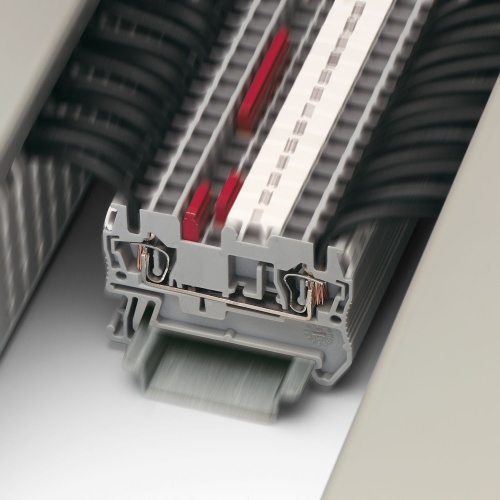

Phoenix Contact 3031238 A spring-cage protective conductor terminal block has two connections and uses a spring-cage connection method, with conductors having cross-sections ranging from 0.08 mm² to 4 mm². It is mounted using the NS 35/7.5 or NS 35/15 type mounting system, and is typically colored green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Spring Cage Ground Terminal Block
Features
Additional labeling options
Low contact resistance
Corrosion-free terminal points
Tested for railway applications
Downloads
Phoenix 3031238 CAD data International.dxfPhoenix 3031238 CAD data International.pdfPhoenix 3031238 CAD data International.stpPhoenix 3031238 Certification English-2.pdfPhoenix 3031238 Certification English.pdfPhoenix 3031238 Data Sheet English.pdfPhoenix 3031238 Manufacturers declaration International-2.pdfPhoenix 3031238 Manufacturers declaration International.pdfPhoenix 3031238 Safety note English.pdfPhoenix 3031238 Tender Text English.zipPhoenix 3031238 User instructions for the Ex Area International.pdf
