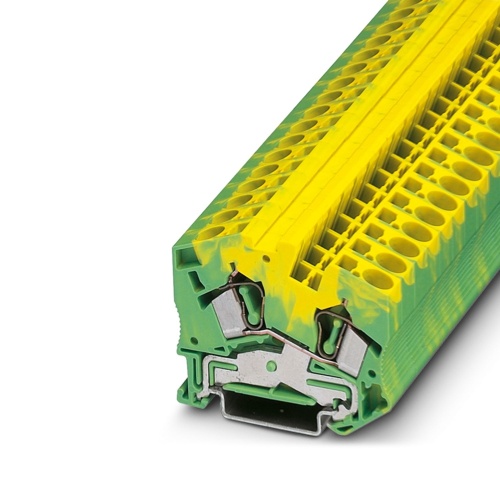

Phoenix Contact 3038147 Spring-cage protective conductor terminal block STS 6-PE
Normally In Stock
Code: 63307
STS 6-PE Phoenix 3038147 Ground terminal block Spring-cage connection green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$10.84
Sale Price
$9.03
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038147 A spring-cage protective conductor terminal block is available with 2 connections and uses a spring-cage connection method at one level. The cross-sectional area of the conductors ranges from 0.2 mm² to 10 mm², while it can be mounted using either NS 35/7.5 or NS 35/15 types. Additionally, this terminal block is distinguished by its color, which is green-yellow in hue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
8
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Spring Cage Ground Terminal Block
Features
Same shape and pitch as the feed-through terminal blocks
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
All the requirements of standard IEC 60947-7-2 are met
Downloads
Phoenix 3038147 CAD data International.dxfPhoenix 3038147 CAD data International.pdfPhoenix 3038147 CAD data International.stpPhoenix 3038147 Data Sheet English.pdfPhoenix 3038147 Manufacturers declaration International.pdfPhoenix 3038147 Safety note English.pdfPhoenix 3038147 Tender Text English.zip
