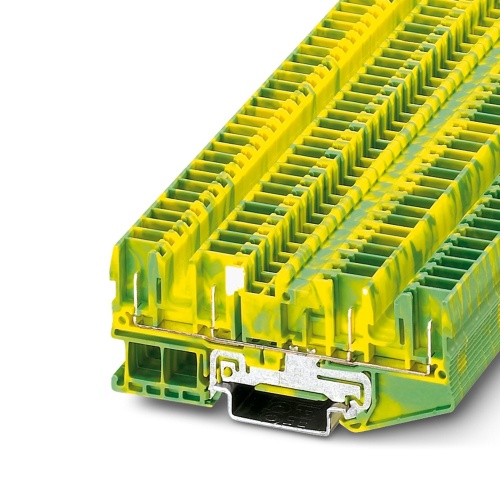

Phoenix Contact 3042162 Spring-cage protective conductor terminal block ST 2,5-QUATTRO/4P-PE
Normally In Stock
Code: 63305
ST 2,5-QUATTRO/4P-PE Phoenix 3042162 Ground terminal block Spring-cage/plug-in connection green-yellow Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.87
Sale Price
$6.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042162 A spring-cage protective conductor terminal block with 4 connections can be installed using a plug-in connection system and has available cross sections ranging from 0.08 mm² to 4 mm². This type of terminal block is mounted using the NS 35/7.5 and NS 35/15 standards, and its housing is colored green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Spring Cage Ground Terminal Block
Features
Same shape and pitch as the PIN/PIN versions of the COMBI series
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
ST ...-PE meet all the requirements of standard IEC 60947-7-2
Tested for railway applications
