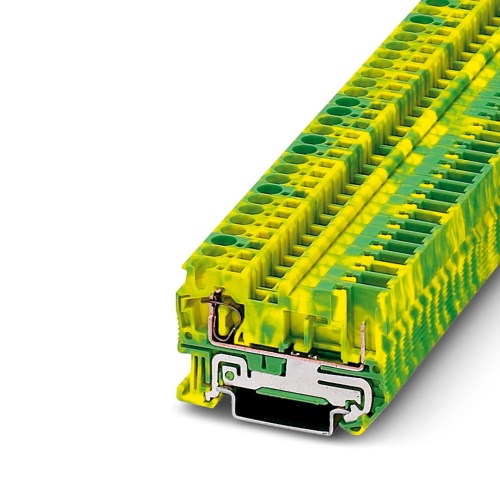

Phoenix Contact 3042722 Spring-cage protective conductor terminal block ST 4/ 1P-PE
Normally In Stock
Code: 63303
ST 4/ 1P-PE Phoenix 3042722 Ground terminal block Spring-cage/plug-in connection green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$6.83
Sale Price
$5.69
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042722 A spring-cage protective conductor terminal block is available with a two-way connection method, featuring spring-cage and plug-in connections. It has a left-hand connection point and a right-hand connection point, accommodating wires with cross-sections ranging from 0.08 mm2 to 6 mm2. The mounting types offered are NS35/7.5 and NS35/15, and the terminal block is identified by its green-yellow color code.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Spring Cage Ground Terminal Block
Features
Same shape and pitch as the basic terminal blocks
Tested for railway applications
