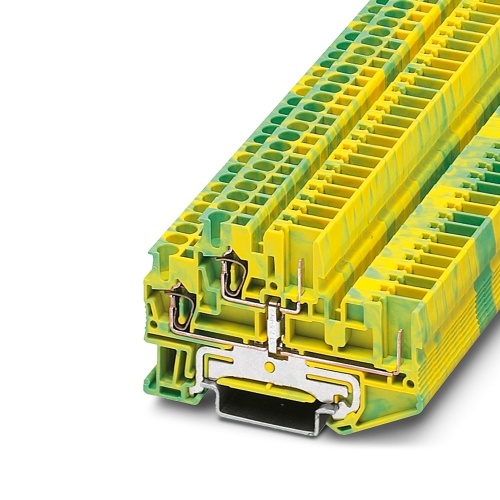

Phoenix Contact 3040067 Protective conductor double-level terminal block STTB 2,5/2P-PE
Normally In Stock
Code: 63292
STTB 2,5/2P-PE Phoenix 3040067 Ground terminal block Spring-cage/plug-in connection 500 V 22 Amp green-yellow Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$14.27
Sale Price
$11.89
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3040067 A protective conductor double-level terminal block is available with a nominal voltage of 500 V and a maximum current rating of 22 A, featuring a spring-cage/plug-in connection method where the left connections are for the first and second levels, suitable for mounting types NS 35/15 and NS 35/7.5, with cross-sections ranging from 0.08 mm2 to 4 mm2, and identified by a green-yellow color code.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Connection Method
Plug Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Ground Terminal Block
Sub Component
Protective Conductor Double-Level Terminal Block
Features
These mixed versions combine the advantages of double-level feed-through terminal blocks and ground terminal blocks of the same shape

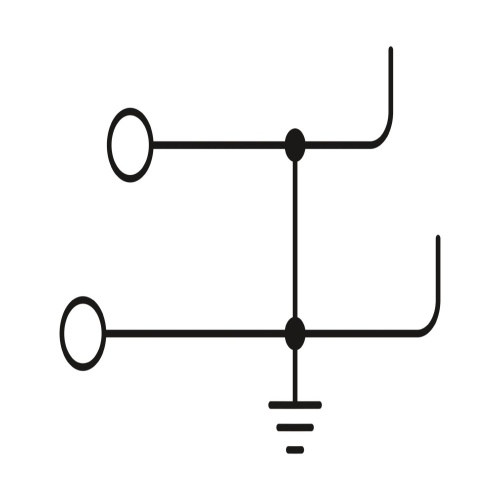

The PE/L and PE/N types feature a protective conductor contact with the DIN rail in the lower level, while the upper level is designed as a feed-through level
Tested for railway applications
Potential routing on two levels
