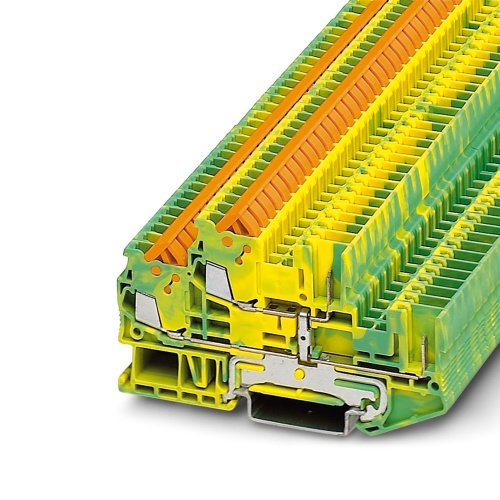

Phoenix Contact 3050219 Protective conductor double-level terminal block QTTCB 1,5/ 2P-PE
Normally In Stock
Code: 63288
QTTCB 1,5/ 2P-PE Phoenix 3050219 Ground terminal block Fast/plug-in connection green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$9.12
Sale Price
$7.60
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3050219 A protective conductor double-level terminal block can be connected using a fast/plug-in connection method and is rated for cross sections ranging from 0.25 mm² to 1.5 mm². The terminal block features mounting types NS 35/7.5 and NS 35/15, with a color code of green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
16
Terminal Block Connection Method
Plug Connection
Terminal Block Component Color
Green/Yellow
Terminal Block Connection Method
Fast Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Protective Conductor Double-Level Terminal Block
Features
Ground terminal blocks of the same shape are available
Tested for railway applications
