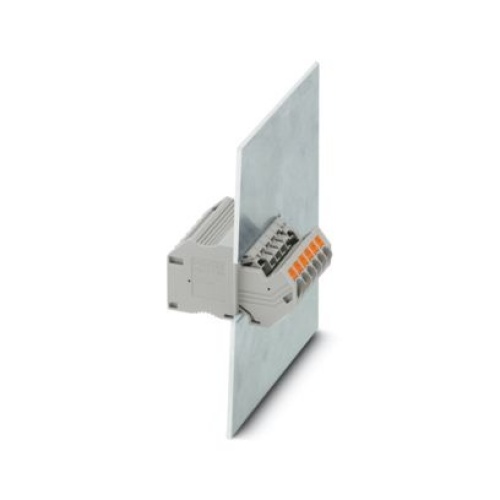

Phoenix Contact 3044919 Panel Feed-through Terminal Block
Phoenix 3044919 Feed-through terminal block Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 5)
Price: $66.16
Sale Price:
$39.94

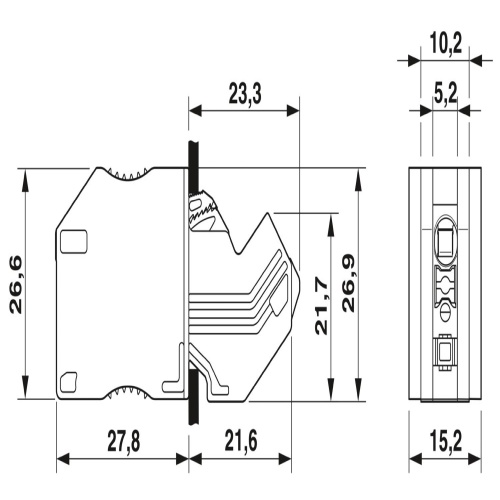

Panel feed-through terminal block, Minimum distance to other conductive surfaces: min 5 mm, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 28, number of positions: 14, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 77.1 mm, height: 26.6 mm, color: gray, mounting type: Wall mounting
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Fused | Not Fused |
| Terminal Block Grounded | Not Grounded |
| Jumper Pitch | 5.2 mm |
| Terminal Block Number of Connections | 28 |
| Jumper Number of Positions | 14 |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Sub Component | Feed-through terminal block |
| Sub Component | Panel Feed-through Terminal Block |
