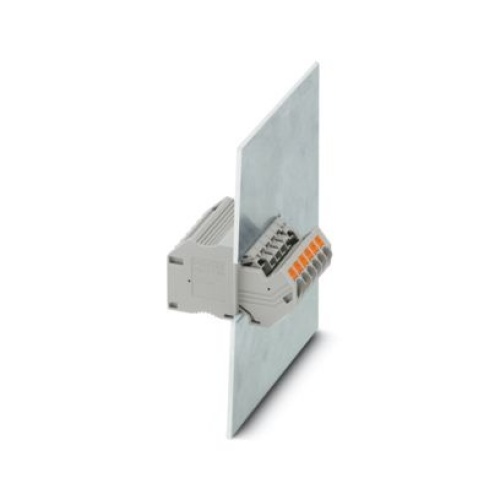

Phoenix Contact 3044910 Panel Feed-through Terminal Block
Code: 63113
Phoenix 3044910 Feed-through terminal block Terminal Blocks
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Related Products
Replacement Products
Description

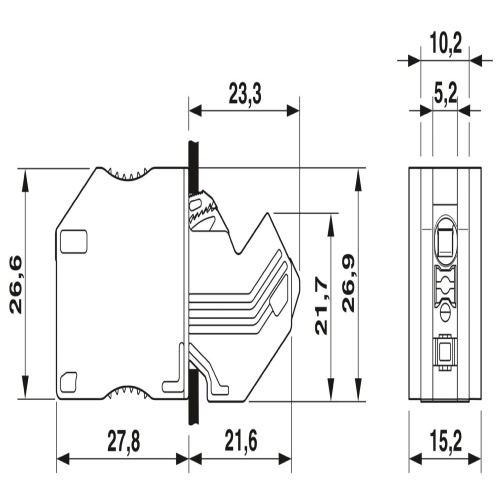

Panel feed-through terminal block, Minimum distance to other conductive surfaces: min 5 mm, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 10, number of positions: 5, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 30.8 mm, height: 26.6 mm, color: gray, mounting type: Wall mounting
Specifications
Downloads
Phoenix 3044910 CAD data International.dxfPhoenix 3044910 CAD data International.pdfPhoenix 3044910 CAD data International.stpPhoenix 3044910 Manufacturers declaration International-2.pdfPhoenix 3044910 Manufacturers declaration International.pdfPhoenix 3044910 Package Slip International.pdfPhoenix 3044910 Safety note English.pdfPhoenix 3044910 Tender Text English.zip
