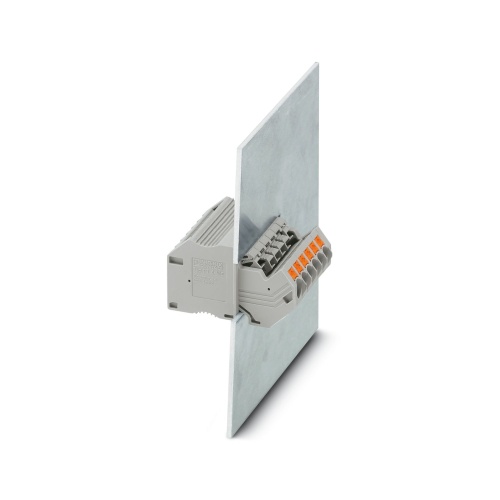

Phoenix Contact 3044920 Panel feed-through terminal block PT 4-WE/15
Normally In Stock
Code: 63110
Phoenix 3044920 Feed-through terminal block Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$67.58
Sale Price
$56.32
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044920 A panel feed-through terminal block has a nominal voltage rating of 500 V and can handle a maximum nominal current of 24 A, accommodating up to 30 connections at 15 different positions, using a push-in connection method. The rated cross-sectional area is 4 mm2, spanning from 0.14 mm2-4 mm2, and the terminal block is designed for panel mounting with a gray color finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Grounded
Not Grounded
Terminal Block Number of Connections
30
Jumper Pitch
5.2 mm
Jumper Number of Positions
15
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Panel Feed-Through Terminal Block
Features
Easy grouping with engagement pin versions
CLIPLINE complete accessories for easy bridging, testing, and marking

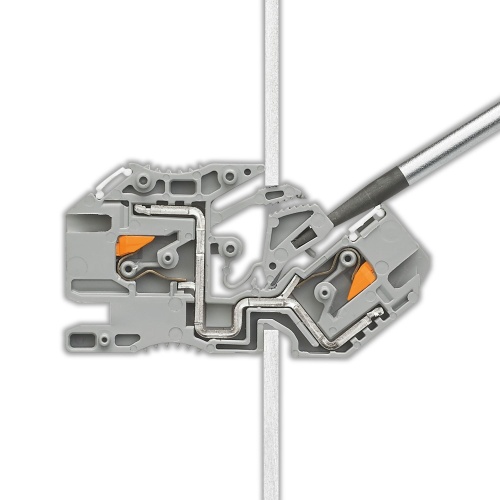

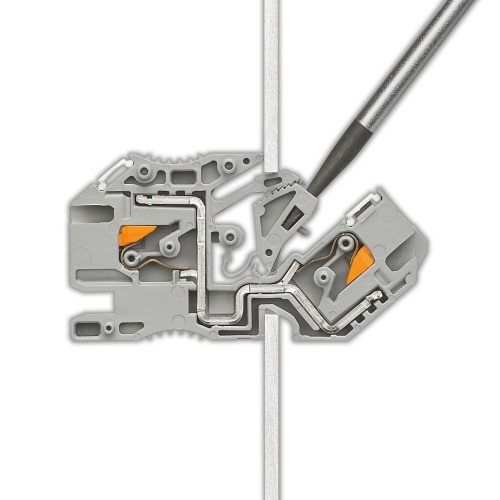

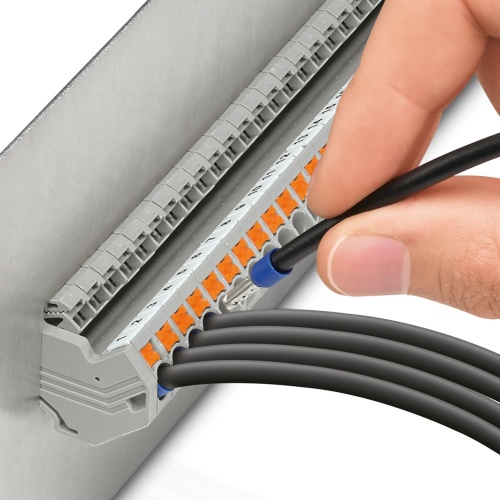

Easy connection of the conductors, thanks to fast Push-in spring connection
Highly flexible, thanks to alignable single terminal blocks
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Downloads
Phoenix 3044920 CAD data International.dxfPhoenix 3044920 CAD data International.pdfPhoenix 3044920 CAD data International.stpPhoenix 3044920 Manufacturers declaration International-2.pdfPhoenix 3044920 Manufacturers declaration International.pdfPhoenix 3044920 Package Slip International.pdfPhoenix 3044920 Safety note English.pdfPhoenix 3044920 Tender Text English.zip
