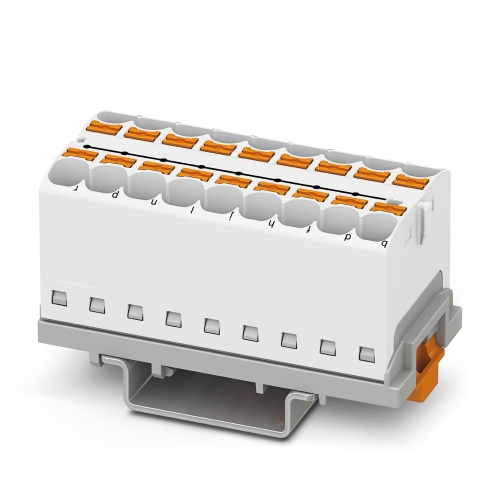

Phoenix Contact 3273582 Distribution block PTFIX 18X4-NS35 WH
Normally In Stock
Code: 62989
PTFIX 18X4-NS35 WH Phoenix 3273582 Distributor terminal block Push-in connection 800 V 32 Amp white Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$9.10
Sale Price
$7.58
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273582 The distribution block features vertical alignment and can be found at various voltage levels of 800 V, with a maximum current capacity of 32 A, accommodating up to 18 connections. The connection method utilizes push-in connections, while the cross-sectional area ranges from 0.2 mm2 to 6 mm2. Available mounting types include NS35/7,5 and NS35/15, and it comes in white color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
18
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Component Color
White
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Downloads
Phoenix 3273582 CAD data International.dxfPhoenix 3273582 CAD data International.pdfPhoenix 3273582 CAD data International.stpPhoenix 3273582 Manufacturers declaration International-2.pdfPhoenix 3273582 Manufacturers declaration International.pdfPhoenix 3273582 Safety note English.pdfPhoenix 3273582 Tender Text English.zip
